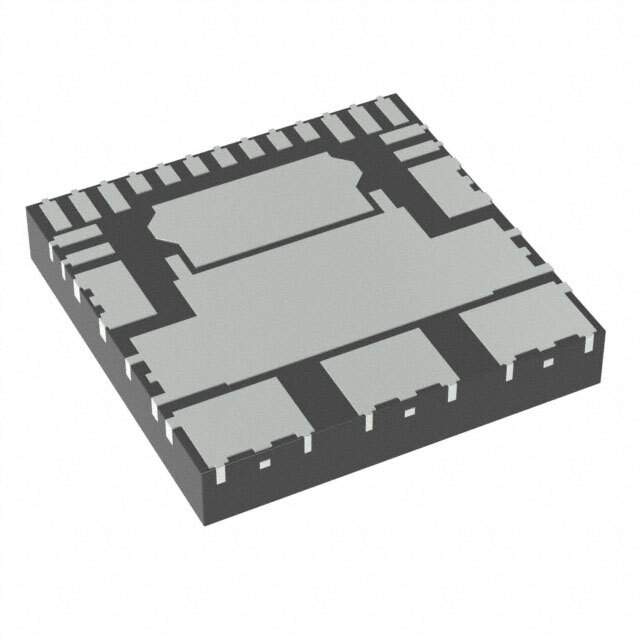

MC35XS3500PNA Real Image
Same model may have multiple batches, images only for reference.

MC35XS3500PNA

Part No MC35XS3500PNA
Manufacturer Freescale Semiconductor - NXP
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC SWITCH HIGHSIDE 24PQFN
Datasheet
MC35XS3500PNA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Switch Type General Purpose
Number of Outputs 6
Output Type N-Channel
Voltage - Load 7 V to 20 V
Supply Voltage - Operating 3 V to 5.5 V
Rds On (Typ) 35 mOhm (Max)
Features Watchdog Timer
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package 24-PQFN (12x12)
Win Source Part Number 119922-MC35XS3500PNA
Ultra Librarian 3D Model Ultra Librarian MC35XS3500PNA CAD Model

Description

The NXP MC35XS3500PNA is a general-purpose N-channel switch with a watchdog timer and six outputs. It offers current limiting, open-load detection, over-temperature and over-voltage protection.

  • Voltage Range: 7 V to 20 V
  • Maximum Rds On: 35 mOhm
  • Package: 24-PQFN (12x12 mm)
  • Operating Temperature Range: -40°C to 150°C
  • Status: Obsolete and end-of-life (EOL)
