The VND5E006ASPTR-E from STMicroelectronics is a state-of-the-art automotive-grade double-channel high-side driver integrated circuit (IC) designed to drive resistive, capacitive, and inductive loads with high efficiency and precision. This device is part of the VIPower M0-5 family and is specifically engineered to meet the rigorous demands of automotive applications, offering a robust solution for driving loads such as bulbs, LEDs, motors, and other actuators.

Key Features

• High-Side Switch: The VND5E006ASPTR-E operates as a high-side switch, allowing for a direct connection to the battery or power supply without the need for external components to control the load.
• Current Control: It features active current limitation to protect the power switch from overloads, and it provides precise control over the load current.
• Thermal Shutdown: With built-in thermal shutdown protection, the device ensures safe operation by turning off the output when the junction temperature exceeds safe limits.
• Load Dump Protection: The IC is designed to withstand voltage surges, such as those caused by load dump scenarios in vehicles, thereby ensuring reliability and longevity.
• MultiSense Diagnostics: It includes diagnostic functions through the MultiSense pin, which provides feedback on the load current, supply voltage, and temperature.
• Compliance: The VND5E006ASPTR-E is compliant with the ISO 26262 standard, making it suitable for applications requiring functional safety.

Applications

The VND5E006ASPTR-E is ideal for a variety of automotive applications, including but not limited to:

• Headlight and rear light control
• Interior lighting
• Motor and actuator control systems
• Intelligent power distribution systems

Package and Quality

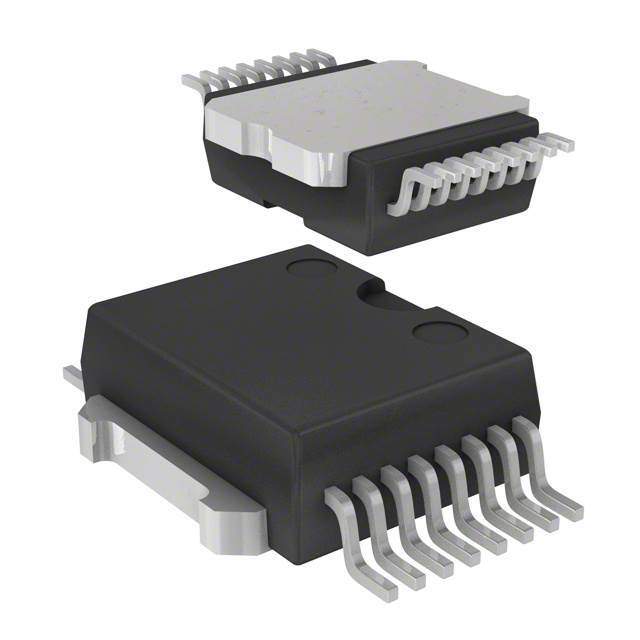

Enclosed in a PowerSSO-16 package, the VND5E006ASPTR-E is designed with a compact footprint and lead-free terminals, suitable for surface-mount technology (SMT). The device is qualified for automotive electronics standards, ensuring high reliability and performance under the harsh conditions typical of automotive environments.

With its combination of advanced features and rigorous quality standards, the VND5E006ASPTR-E from STMicroelectronics represents a superior choice for designers looking to implement robust and efficient high-side power switching in automotive applications.
