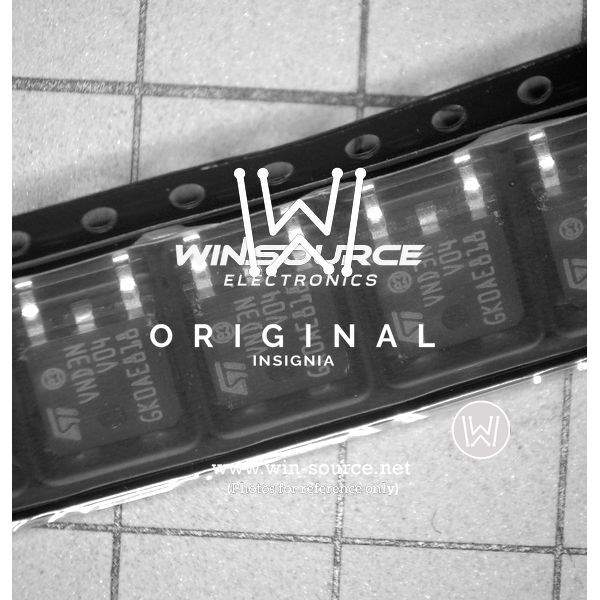

The VND3NV04-E from STMicroelectronics is a highly integrated device designed for automotive and industrial applications. This product belongs to the OMNIFET II family, which is known for its fully autoprotected power MOSFETs. The VND3NV04-E is particularly suitable for driving resistive or inductive loads with high inrush current and for applications where a high level of protection is required.

Key Features

• High Current Capability: With the ability to handle continuous current up to 3.5A, the VND3NV04-E can drive a wide range of loads efficiently.
• Thermal Shutdown: The device includes an integrated thermal shutdown feature to protect against overheating, ensuring reliable operation under various conditions.
• Short Circuit Protection: Built-in short circuit protection guards the device against potential damage caused by load short circuits.
• Overvoltage Clamp: An overvoltage clamp protects sensitive circuitry from voltage spikes, enhancing the overall durability of the system.
• Load Dump Protection: The VND3NV04-E is equipped with load dump protection, which shields the device from surges in the power supply, common in automotive environments.
• Diagnostic Feedback: Diagnostic feedback via the status pin allows for real-time monitoring of the device’s performance and fault conditions.

Applications

The robust nature and protective features of the VND3NV04-E make it an ideal choice for a variety of applications, including:

• Lamp drivers
• Relay and solenoid drivers
• DC motor control in automotive environments
• Industrial automation systems

Quality and Reliability

STMicroelectronics is renowned for its commitment to quality and reliability, and the VND3NV04-E is no exception. Manufactured to meet the stringent requirements of the automotive industry, this device is characterized by its robustness and long operational life, making it a trusted choice for designers and engineers.
