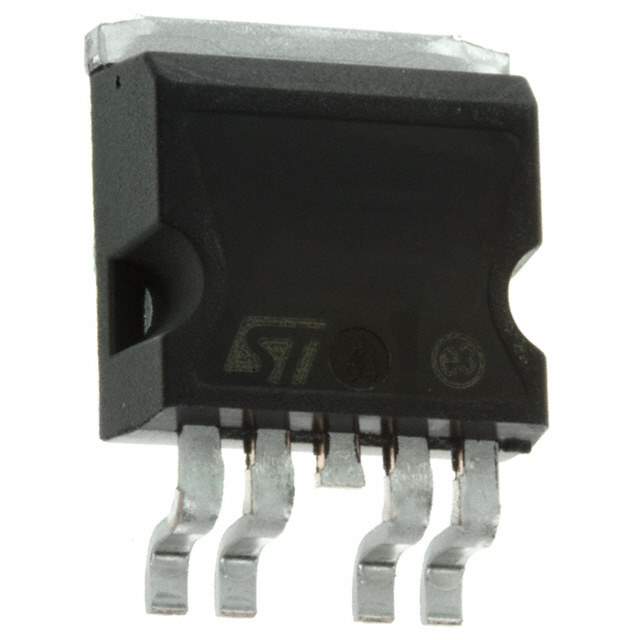

Introducing the VN820B5TR-E from STMicroelectronics

The VN820B5TR-E is a high-performance automotive-grade power switch, designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This product is tailored to meet the rigorous demands of modern automotive applications, providing a reliable and efficient solution for driving inductive, resistive, or capacitive loads with outstanding power efficiency and thermal performance.

Key Features

• Single Channel High-Side Driver: The VN820B5TR-E operates as a single channel high-side driver, allowing it to control power to a load that is connected to ground, which is a common requirement in automotive circuits.
• Integrated Protections: It includes over-temperature protection, overcurrent protection, and active clamp circuitry, ensuring the safety and longevity of the device under harsh operating conditions.
• Advanced Technology: Built using ST's VIPower M0-5 technology, it offers enhanced power handling capability with a low on-resistance, making it highly efficient for its size and power rating.
• Diagnostic Features: The VN820B5TR-E provides diagnostic feedback that can be used to monitor the status of the switch, the load, and the system, enabling predictive maintenance and fault detection.
• Package and Temperature Range: This component is available in a compact SO-8 package, making it suitable for space-constrained applications, and it operates over a wide temperature range, from -40°C to 150°C, accommodating the thermal extremes of automotive environments.

Applications

The VN820B5TR-E is ideal for a variety of automotive applications, including but not limited to:

• Driving lamps, fans, and motors
• Control of resistive and capacitive loads
• Automotive interior and exterior lighting
• Engine and powertrain control units

STMicroelectronics' Commitment

STMicroelectronics is committed to delivering high-quality products that meet the stringent standards of the automotive industry. The VN820B5TR-E is a testament to this commitment, providing a robust and reliable power switch solution that enhances the performance and safety of automotive electrical systems.

With the VN820B5TR-E, automotive manufacturers and suppliers can expect a product that not only meets their current needs but also addresses the challenges of future automotive innovations.
