STMicroelectronics VN7010AJTR-E High-Side Driver

The VN7010AJTR-E is a cutting-edge, high-side driver manufactured by STMicroelectronics, designed to deliver robust and efficient performance in a wide range of automotive and industrial applications. This device is part of the VIPower M0-7 series and is specifically engineered to handle high-power loads with precision and reliability.

Key Features

• Integrated Design: The VN7010AJTR-E integrates the control section and the power stage on the same chip, which simplifies the design and reduces the component count in the application circuit.
• High Voltage Capability: It can withstand voltages up to 28V, making it suitable for 12V automotive systems, including those that experience voltage spikes during operation.
• Current Limitation: The device includes current limitation to protect against overcurrent conditions, enhancing the overall safety and longevity of the system.
• Thermal Shutdown: A thermal shutdown feature with auto-restart ensures protection against overheating, further safeguarding the device and the load it controls.
• Diagnostic Functions: The VN7010AJTR-E provides various diagnostic functions, including load current sense, to monitor the status of the driven load.
• Low Standby Current: It is designed to have a low standby current, which is crucial for reducing power consumption, especially in battery-powered applications.

Applications

The VN7010AJTR-E is versatile and can be used in a variety of applications, such as:

• Automotive applications including body control modules, lighting, and smart junction boxes.
• Driving resistive, inductive, and capacitive loads.
• Industrial automation systems requiring reliable high-side switching.

Package and Quality

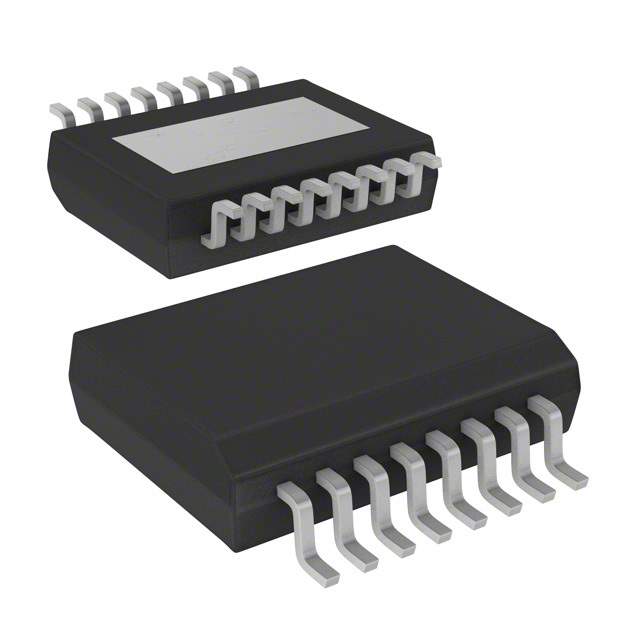

The VN7010AJTR-E comes in a compact and robust PowerSSO-16 package, ensuring a minimal footprint on the PCB while providing excellent thermal performance. The device is qualified according to AEC-Q100 standards, which guarantees its suitability for automotive-grade applications. With its advanced features and high reliability, the VN7010AJTR-E from STMicroelectronics is an excellent choice for designers seeking a high-performance high-side driver.
