STMicroelectronics VN5050AJ-E High-Side Driver

The VN5050AJ-E is a robust, high-side driver manufactured by STMicroelectronics, designed to deliver outstanding performance in driving resistive, inductive, and capacitive loads. This advanced power management integrated circuit (IC) is particularly suitable for automotive applications and is engineered to handle high current loads with great efficiency and reliability.

Constructed with ST's proprietary VIPower technology, the VN5050AJ-E ensures optimal integration of the control circuit and the power stage on the same chip, which enhances its performance and compactness. This integration allows for direct driving of the load using the vehicle's battery as the power supply, making it an excellent choice for applications such as automotive lighting, solenoid control, and other high-side switch tasks in the car's powertrain and body control modules.

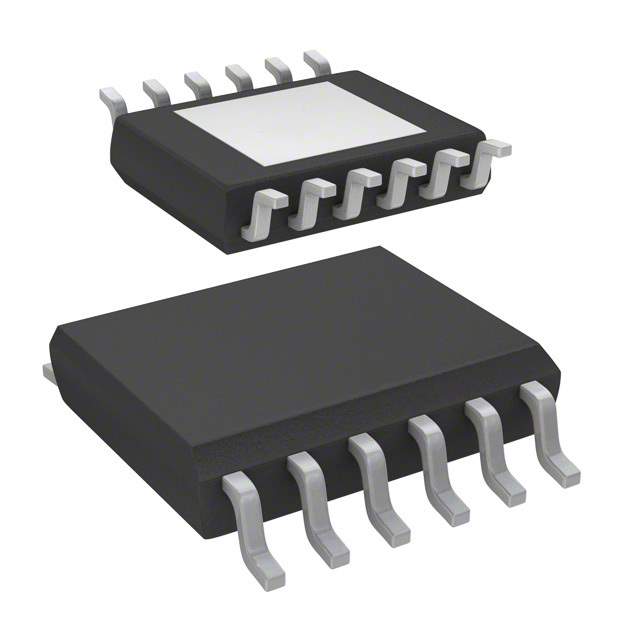

The VN5050AJ-E comes in a compact, surface-mount PowerSSO-12 package, which is designed to minimize the PCB footprint while maximizing thermal performance. The device operates over a wide voltage range from 5.5V to 36V, providing a high degree of flexibility for different automotive voltage requirements. It also features an on-chip charge pump that ensures gate driving capability even during low voltage conditions, ensuring consistent performance across various operating conditions.

Safety and diagnostic features are at the core of the VN5050AJ-E's design. It incorporates overtemperature protection, load current limitation, and active clamp to protect both the IC and the load from damage due to overcurrent or short-circuit conditions. Additionally, the device offers diagnostic feedback through a status pin, which can be used to monitor the health and proper functioning of the driver, thereby enhancing the system's reliability.

Overall, the VN5050AJ-E is a testament to STMicroelectronics' commitment to providing high-quality, high-performance solutions for the demanding automotive industry. Its robustness, combined with advanced protection and diagnostic features, makes it an ideal choice for designers looking to create reliable and efficient high-side driving applications.
