STMicroelectronics VIPER100A-E: High-Voltage Converter

The VIPER100A-E from STMicroelectronics is a robust, high-performance off-line converter that integrates a dedicated current mode PWM controller with a high-voltage power MOSFET. Designed for compact power supply applications, this device is particularly well-suited for applications requiring a power range of up to 100 watts. The VIPER100A-E is a staple in the industry for those looking for a reliable solution for switched-mode power supplies.

One of the standout features of the VIPER100A-E is its wide input voltage range, which allows it to operate efficiently across various input conditions. This makes it an excellent choice for applications that may experience fluctuations in power supply. The device also boasts an impressive energy-saving mode, which ensures low power consumption at light load, thereby enhancing the overall efficiency of the power supply.

The built-in error amplifier, along with an adjustable operating frequency that can reach up to 200 kHz, allows for flexible control over the power supply parameters, ensuring that the VIPER100A-E can be fine-tuned to meet the specific requirements of the application it is being used in. Additionally, the device features various protections, such as overvoltage, overload, and thermal shutdown, which safeguard the system against potential damage from abnormal operating conditions.

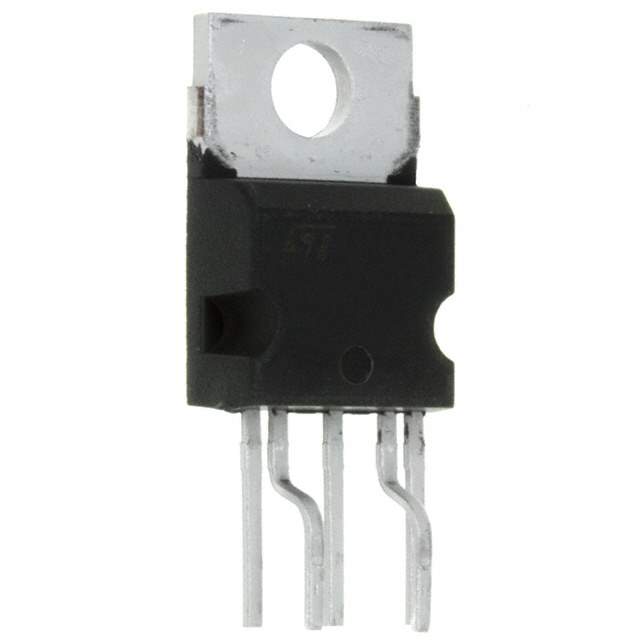

The VIPER100A-E is encapsulated in a Pentawatt HV package, which is known for its compact size and ease of mounting, saving valuable board space while providing ample power capabilities. This package also offers excellent thermal performance, ensuring that the device remains cool even under heavy loads.

In summary, the VIPER100A-E from STMicroelectronics is a versatile and efficient solution for designers looking to implement a high-voltage converter in their power supply designs. With its integrated features, wide input voltage range, and robust protections, it stands out as a reliable and energy-efficient component that can cater to a broad spectrum of power applications.
