The USBUF02W6 is a cutting-edge, integrated ESD protection device manufactured by STMicroelectronics, designed to safeguard high-speed data lines and USB interfaces from electrostatic discharge (ESD) threats. This compact and efficient solution is a must-have for modern electronic devices that require robust protection against the potentially damaging effects of ESD.

Key Features

• High ESD Protection: The USBUF02W6 is capable of withstanding ESD discharges up to 15 kV, ensuring that your USB ports and connected devices are shielded from sudden electrical spikes.
• Low Capacitance: With a very low line capacitance, this device preserves signal integrity and ensures high-speed data transmission without significant signal degradation, making it ideal for USB 2.0 and other high-speed interfaces.
• Stand-off Voltage: The device operates with a stand-off voltage of 5.25 V, which is suitable for protecting 5 V bus lines.

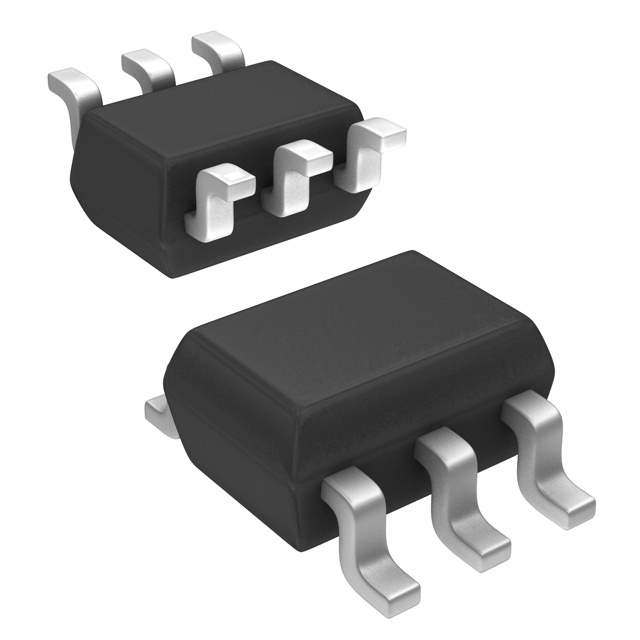

• Compact Package: The USBUF02W6 comes in an SOT-23-6L package, which is not only space-efficient but also allows for easy integration into existing PCB designs.
• Low Leakage Current: It features an ultra-low leakage current that minimizes power loss, thereby enhancing the overall efficiency of the application it is used in.

Applications

The USBUF02W6 is versatile and can be used in a wide range of applications, including:

• USB 2.0 power and data line protection
• Protection for other high-speed data lines such as HDMI, IEEE 1394, and LVDS
• Portable electronics such as smartphones, tablets, and laptops
• Consumer electronics and peripherals requiring ESD protection

Why Choose USBUF02W6?

STMicroelectronics' commitment to quality and performance is evident in the USBUF02W6. With its robust ESD protection, low capacitance, and compact form factor, this device is an excellent choice for designers looking to enhance the durability and reliability of their electronic products. Ensuring that your sensitive high-speed data lines are protected has never been easier or more efficient.
