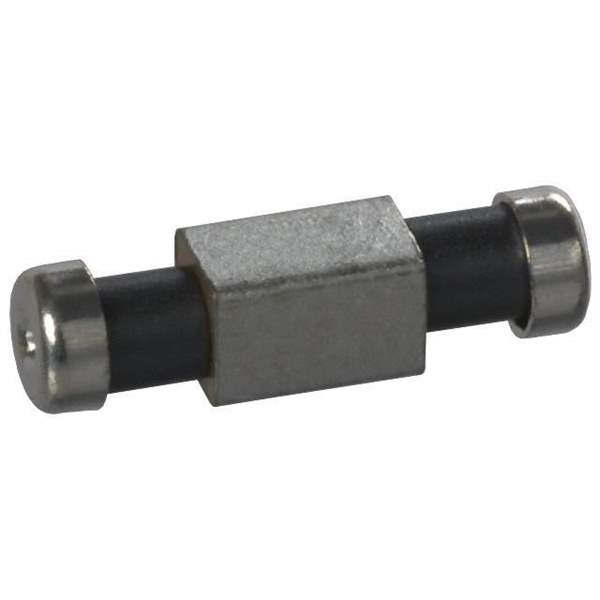

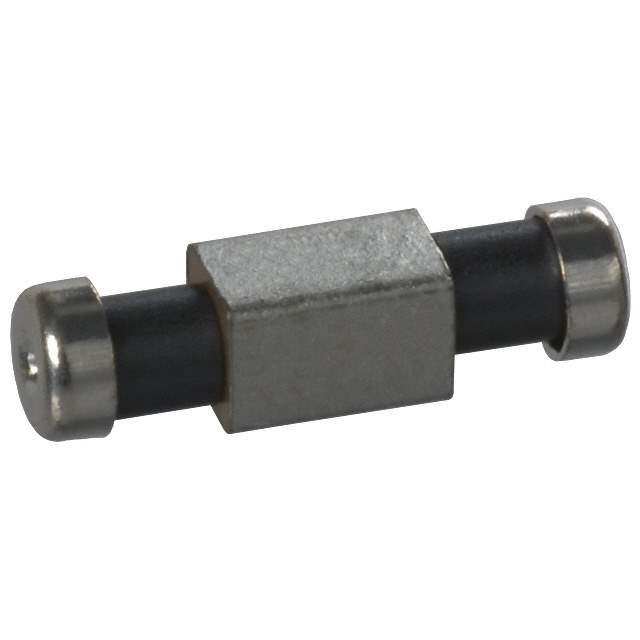

NFE61PT472C1H9L Real Image
Same model may have multiple batches, images only for reference.

NFE61PT472C1H9L

Part No NFE61PT472C1H9L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description EMI Filter LC-Circuit 2A 50VDC Flat Style SMD T/R / FILTER LC(T) 4700PF SMD
Datasheet
NFE61PT472C1H9L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Current 2A
Values C = 4700pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.268" L x 0.063" W (6.80mm x 1.60mm)
Height 0.075" (1.90mm)
Win Source Part Number 025240-NFE61PT472C1H9L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NFE61P
Introduction Date September 29, 2003
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NFE61PT472C1H9L CAD Model

Description

The Murata NFE61PT472C1H9L is a high-performance, low-pass filter IC designed for general-purpose applications.

  • Package: 0.268" L x 0.063" W (6.80mm x 1.60mm)
  • Height: 0.075" (1.90mm)
  • Current: Up to 2A
  • Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Balanced
  • Alternative for: NFE61PT472C1H9 and NFE61PT472C1H9B
  • Applications: General Purpose
