The USBUF01W6 from STMicroelectronics is a state-of-the-art Transient Voltage Suppressor (TVS) designed to protect sensitive USB data lines from the damaging effects of Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), and other voltage-induced transient events. This device is specifically tailored for USB 2.0 applications, ensuring the integrity of communication and data transfers.

Key Features

• ESD Protection: With its robust ESD protection, the USBUF01W6 can withstand electrostatic discharges up to ±15kV (air and contact discharge) as per the IEC 61000-4-2 standard, providing a high level of security for your USB interfaces.
• Low Capacitance: The device features ultra-low capacitance of just 3 pF, which minimizes signal attenuation and ensures high-speed data integrity for USB 2.0 interfaces, supporting data rates up to 480 Mbps.
• Unidirectional Protection: The unidirectional design of this TVS diode provides targeted protection for the power and data lines, enhancing system reliability without compromising on performance.
• Standoff Voltage: The USBUF01W6 has a working voltage of 5.25 V, which is ideal for bus-powered USB applications, providing a safeguard against unexpected voltage spikes.
• Low Leakage Current: It features an extremely low leakage current, which is critical for maintaining battery life in portable devices that utilize USB connections.

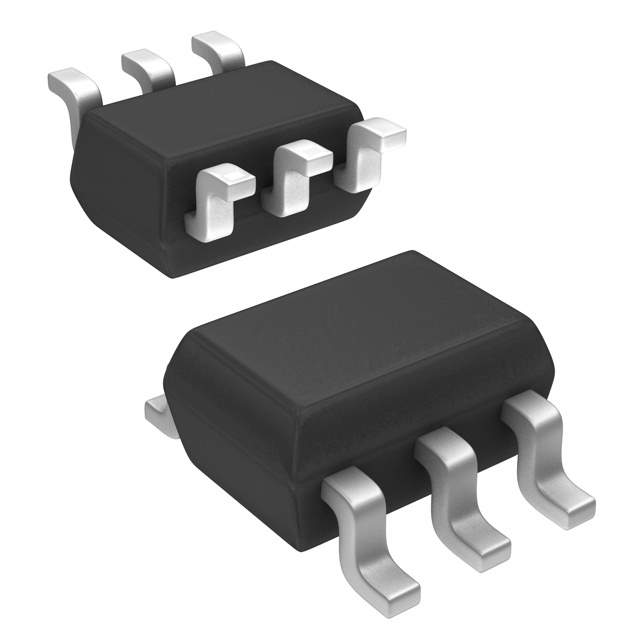

• Compact Package: Housed in a small SOT23-6L package, the USBUF01W6 conserves board space and is suitable for high-density circuit designs.

Applications

The USBUF01W6 is ideal for a wide range of applications where USB 2.0 ports require protection from transient voltages. It is particularly well-suited for:

• Consumer electronics such as smartphones, tablets, and laptops
• Peripheral devices like printers, external hard drives, and webcams
• Communication systems and USB hubs
• Industrial controls and medical equipment with USB interfaces

In summary, the USBUF01W6 by STMicroelectronics offers robust protection for USB 2.0 applications, ensuring devices remain safe from transient voltages while maintaining signal integrity and performance. Its compact design and powerful features make it an essential component for any USB-enabled device.
