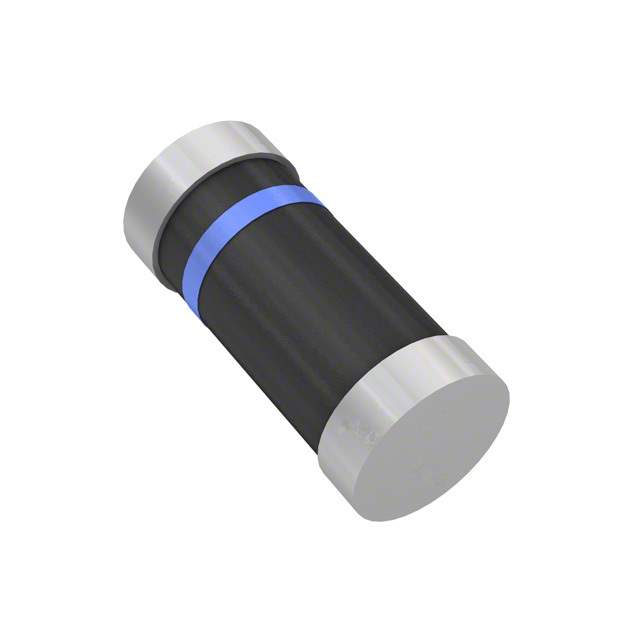

The TMMDB3TG from STMicroelectronics is a high-performance, surface-mount, bidirectional Transil diode designed to provide robust protection for electronic devices against voltage transients induced by inductive load switching and lightning surges. This compact and efficient component is an essential safeguard for sensitive circuits, ensuring the longevity and reliability of a wide array of applications.
Key Features
- Transient Voltage Suppression: The TMMDB3TG is specifically engineered to protect against transient overvoltage events, making it ideal for applications where voltage spikes can occur.
- Low Leakage Current: With its low leakage current, this diode ensures minimal power loss when the device is in standby mode, contributing to the energy efficiency of the overall system.
- Fast Response Time: The diode's quick response to transient events helps to prevent damage to sensitive components, preserving the integrity and performance of the electronic device.
- High Surge Capability: The TMMDB3TG is capable of withstanding high surge currents, providing reliable protection even under severe transient conditions.
- Surface-Mount Package: Its small form factor allows for easy integration into a variety of circuit designs without requiring significant board space.
Applications
The versatility of the TMMDB3TG makes it suitable for a wide range of applications, including:
- Telecommunication systems
- Computer interfaces
- Power supply units
- Portable electronics
- Industrial control systems
Technical Specifications
The TMMDB3TG boasts a range of technical specifications designed for optimal performance:
- Peak Pulse Power Dissipation: 600 W (10/1000 µs)
- Stand-off Voltage: 3.3 V
- Breakdown Voltage Range: 3.67 V to 4.07 V
- Clamping Voltage: 7.2 V at 10 A
- Maximum Reverse Leakage at Stand-off Voltage: 2 µA
- ESD Immunity: IEC 61000-4-2 (15 kV air, 8 kV contact)
With its robust construction and advanced protection capabilities, the TMMDB3TG is an excellent choice for designers looking to enhance the durability and safety of their electronic products.
