STMicroelectronics TDA7563APDTR Multipower BCD Technology Quad Bridge Car Radio Amplifier

The TDA7563APDTR is a high-quality audio power amplifier from STMicroelectronics, designed specifically for automotive applications. This innovative component is built using the cutting-edge Multipower BCD technology, which combines bipolar, CMOS, and DMOS structures to provide outstanding audio performance, efficiency, and reliability.

As part of the TDA7563 family, this device is a quad bridge amplifier capable of delivering up to 4 x 50W of continuous power output. It can drive speakers directly and is optimized for high-end car radio systems. The TDA7563APDTR stands out for its flexibility, as it can operate in various configurations, including Single-Ended (SE) or Bridge-Tied Load (BTL), allowing for versatile audio system designs.

One of the key features of the TDA7563APDTR is its MOSFET output power stage, which ensures high-quality sound reproduction with minimal distortion. The amplifier also includes a built-in advanced diagnostics system that can detect and report faults such as short circuits to GND, to Vcc, across the load, and thermal overrating, ensuring the safety and longevity of the audio system.

The device is also equipped with a standby function that minimizes the quiescent current and a mute function that allows for silent operation when required. Additionally, the TDA7563APDTR incorporates a clip detector feature that prevents speaker damage due to overdriving, as well as a built-in DC offset detector for further protection.

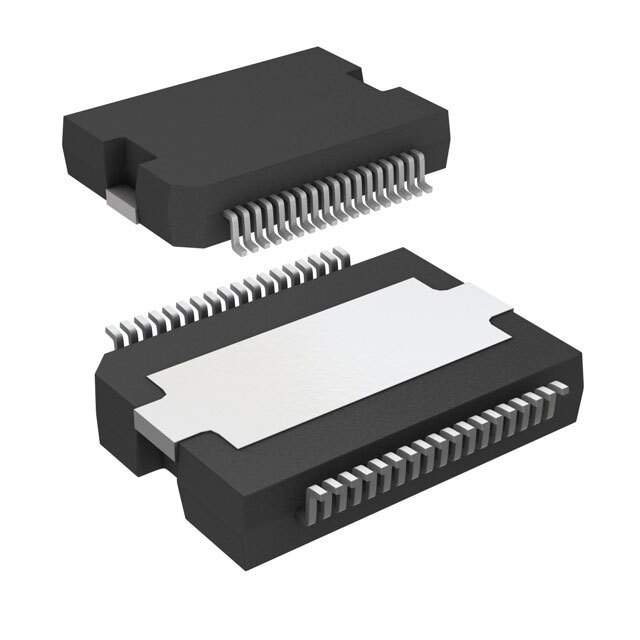

STMicroelectronics has packaged the TDA7563APDTR in a PowerSSO-36 package, which is designed for efficient heat dissipation, ensuring stable operation even under high power conditions. The amplifier is also designed to withstand the harsh conditions of the automotive environment, including load dump voltage surges, making it a reliable choice for car audio manufacturers.

In summary, the TDA7563APDTR from STMicroelectronics is a robust, high-performance quad bridge car radio amplifier that offers superior audio quality, comprehensive protection features, and the flexibility needed for modern automotive audio applications.
