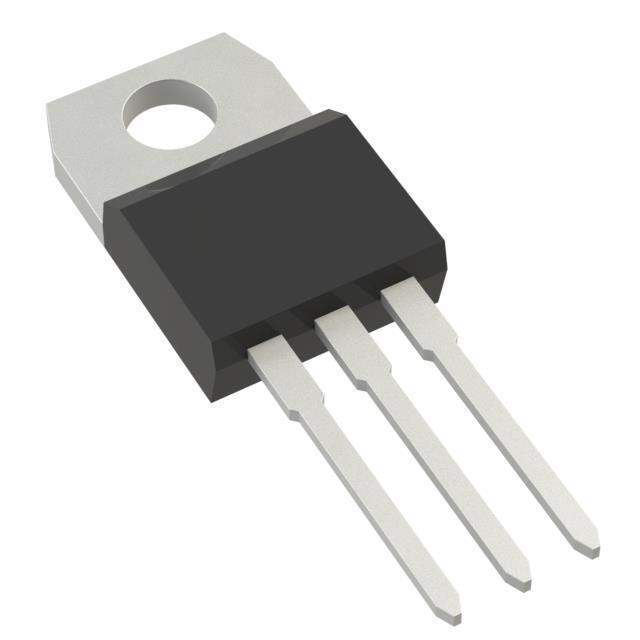

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products >Thyristors TRIACs
Manufacturer STMicroelectronics
Packaging Tube
Part Status Active
Triac Type Alternistor - Snubberless
Voltage - Off State 800 V
Current - On State (It (RMS)) (Max) 20 A
Voltage - Gate Trigger (Vgt) (Max) 1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 200A, 210A
Current - Gate Trigger (Igt) (Max) 35 mA
Ultra Librarian 3D Model Ultra Librarian T2035H-8I CAD Model

Description

Specifically designed to operate at 800 V and 150 °C, the T2035H-8I Triac housed in TO-220AB insulated provides an enhanced thermal management: this 20 A Triac is the right choice for a compact drive of AC loads and enables the heatsink size reduction.
