The STTH506DTI from STMicroelectronics is a state-of-the-art ultrafast high voltage diode, specifically designed to meet the rigorous requirements of high efficiency converters used in a variety of applications such as power supplies, inverters, and as freewheeling diodes in consumer and industrial electronics.

Key Features

• High Reverse Voltage Capability: With a repetitive peak reverse voltage (VRRM) of 600V, the STTH506DTI is well-suited for applications requiring high voltage endurance.
• Ultrafast Reverse Recovery Time: The diode offers an ultrafast reverse recovery time (trr) of 35 ns, minimizing losses during switching and improving overall efficiency.
• High Forward Surge Current: A non-repetitive forward surge current (IFSM) of 150 A ensures the diode can handle high current spikes without failure.
• Low Forward Voltage Drop: The low forward voltage drop (VF) reduces power loss and enhances power conversion efficiency.
• High Junction Temperature: With an operating junction temperature range from -40°C to +175°C, the STTH506DTI is capable of handling high temperature environments, making it reliable for industrial applications.

Applications

The STTH506DTI is ideal for a broad range of applications, including:

• Switch Mode Power Supplies (SMPS)
• Power Factor Correction circuits (PFC)
• Snubber circuits
• High frequency inverters
• Freewheeling diodes in a variety of power switching applications

Package and Quality

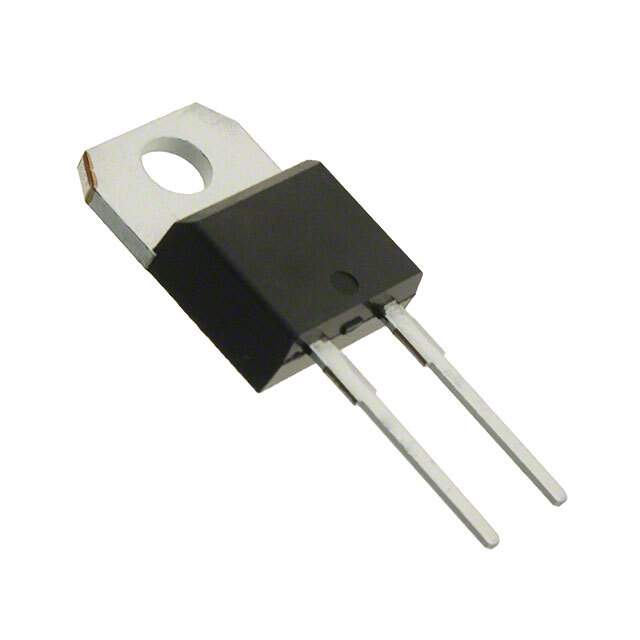

The STTH506DTI is housed in an insulated TO-220FP package, which ensures electrical insulation and mechanical protection. The package is optimized for use in compact designs, and its construction meets the stringent standards of the international quality system for electronic components.

Environmental Compliance

STMicroelectronics is committed to environmental sustainability. The STTH506DTI is compliant with the European Union directives on the restriction of hazardous substances (RoHS), ensuring that it is free from environmentally harmful materials and suitable for use in eco-friendly products.
