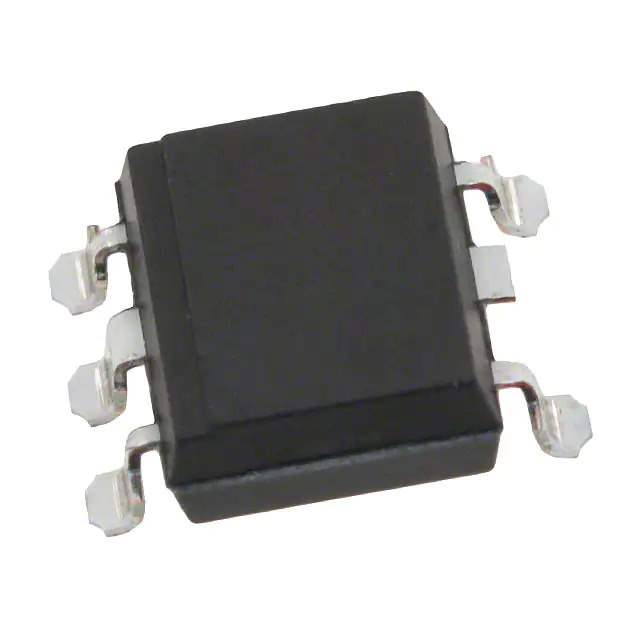

PC4SD21NXZCF Real Image
Same model may have multiple batches, images only for reference.

PC4SD21NXZCF

Part No PC4SD21NXZCF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD / Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 800 V
Static dV/dt (Min) 500V/µs
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 3.5mA
Turn On Time 50µs (Max)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SMD
Supplier Device Package 6-SMD
Approval Agency CSA, UR
Base Product Number PC4SD21
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 888657-PC4SD21NXZCF
Ultra Librarian 3D Model Ultra Librarian PC4SD21NXZCF CAD Model

Description

The 888657-PC4SD21NXZCF is an optoisolator triac output device from Sharp Microelectronics.

  • Package: 6-SMD
  • Maximum Forward Current: 50 mA
  • Typical Forward Voltage: 1.2V
  • Maximum Off-State Voltage: 800V
  • Maximum On-State Current: 100 mA
  • Number of Channels: 1
  • Voltage Isolation: 5000Vrms
  • Zero-Crossing Circuit: Yes
  • Static dV/dt: 500V/μs
  • LED Trigger Current: maximum 5mA
  • Turn-On Time: 50μs (max)
  • Operating Temperature: -30°C to 100°C
  • Approvals: CSA and UR
  • Moisture Sensitivity Level: 1 (unlimited)
  • Status: Obsolete
