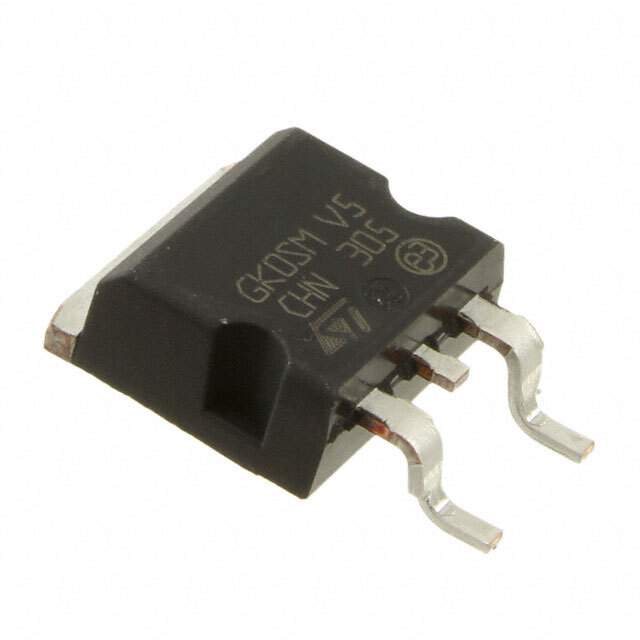

STPS30M60CG-TR Power Schottky Rectifier

The STPS30M60CG-TR is a robust and efficient power Schottky rectifier designed and manufactured by STMicroelectronics. This component is tailored for high-performance applications that require low forward voltage drop and high surge current capability. It is an ideal choice for switch-mode power supplies, high-frequency converters, and power management tasks in a variety of electronic devices.

Key Features

• High Junction Temperature: Capable of operating at a junction temperature of up to 175°C, the STPS30M60CG-TR ensures reliability and stability even under extreme conditions.
• Low Forward Voltage Drop: The device features a very low forward voltage drop, which results in reduced power loss and improved efficiency during operation.
• High Surge Capability: With its excellent surge current capability, this rectifier can handle high current spikes without performance degradation.
• Dual Center Tap Configuration: The rectifier comes in a dual center tap configuration, housed in a TO-220AB package, offering flexibility in design for various circuit topologies.
• Avalanche Rated: This feature provides additional protection against sudden overvoltage conditions, ensuring the longevity and reliability of both the rectifier and the overall system.

Applications

• Switch-mode Power Supplies (SMPS)
• High-frequency DC to DC converters
• Free Wheeling and Polarity Protection applications
• Power Management in Computing and Telecommunication devices

Product Specifications

The STPS30M60CG-TR has an average forward current of 30 A and a non-repetitive peak forward surge current of 300 A, making it suitable for high current applications. Its forward voltage is typically 0.69 V at 15 A, which contributes to the efficiency of the system it is integrated into. The device is also RoHS compliant and adheres to the industry standards for environmental safety and sustainability.

Overall, the STPS30M60CG-TR from STMicroelectronics represents a reliable and efficient solution for designers looking to enhance the power management and conversion efficiency within their electronic systems.
