The STPS30H100CTN is a high-performance Power Schottky Rectifier designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable electronic components. This rectifier is engineered to meet the demanding requirements of high efficiency power supplies, offering superior switching performance and energy savings.
Key Features
- Dual Center Tap Schottky Configuration: The STPS30H100CTN features a dual center tap Schottky configuration, which allows for a common cathode arrangement, providing flexibility in the design of both output rectification and freewheeling in power supplies.
- High Junction Temperature: With a maximum junction temperature of 175°C, this device can withstand high thermal conditions, making it suitable for strenuous applications.
- Low Forward Voltage Drop: The low forward voltage drop (VF) ensures high efficiency, which is critical in power management applications, reducing heat generation and improving system reliability.
- High Surge Current Capability: Its high surge current capability makes it ideal for applications that experience frequent power surges, ensuring the reliability and longevity of the device.

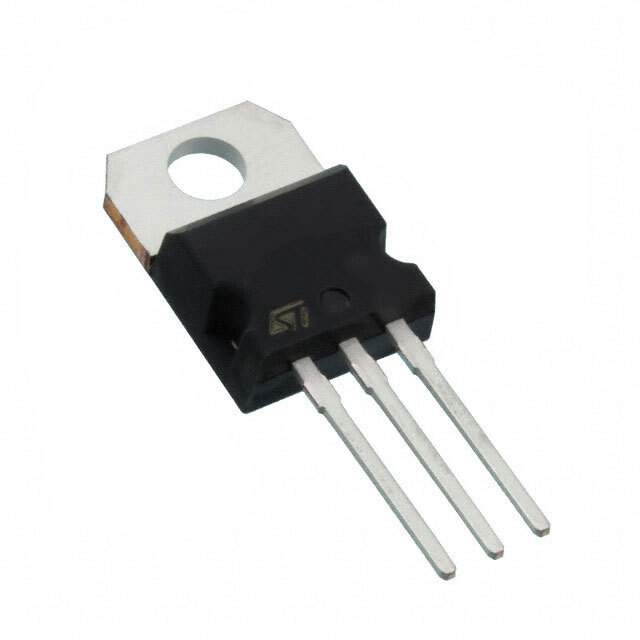

- Robust Package: Housed in a TO-220AB package, the STPS30H100CTN is designed for rugged performance and is easy to mount on a heatsink for enhanced thermal management.
Applications
The STPS30H100CTN is widely used in a variety of applications where efficiency and power density are critical. Some of the common applications include:
- Switch Mode Power Supplies (SMPS)
- Adapters and on-board DC/DC converters
- Free-wheeling diodes in motor control circuits
- Power factor correction circuits
- Automotive applications
Conclusion
The STPS30H100CTN from STMicroelectronics is a robust and efficient solution for power rectification needs. Its high thermal performance, low power loss, and reliability under surge conditions make it an excellent choice for designers looking to improve the performance and durability of their power supply systems.
