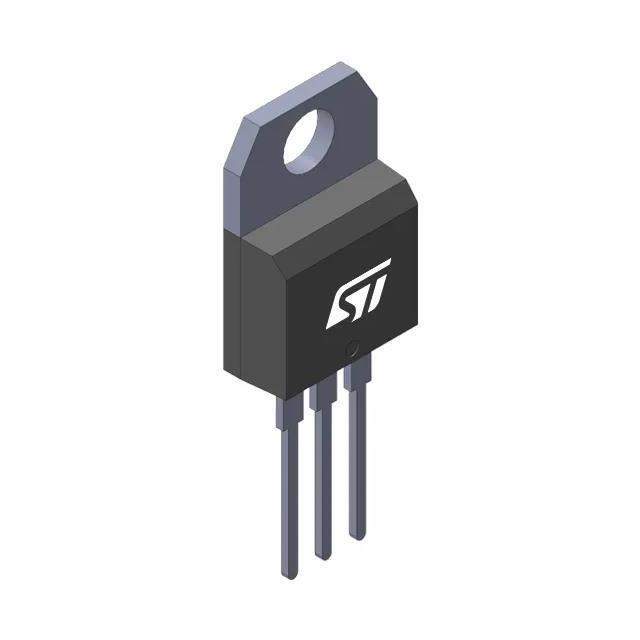

The STPS2045CTC from STMicroelectronics is a robust and efficient Schottky rectifier designed for high-performance power supply applications. This dual center tap Schottky rectifier is particularly well-suited for switch-mode power supplies and high-frequency DC to DC converters.
Key Features
- High Junction Temperature Capability: The STPS2045CTC is capable of operating at junction temperatures up to 150°C, making it reliable for use in high-temperature environments.
- Low Forward Voltage Drop: With a low forward voltage drop, this rectifier ensures minimal power loss and improved efficiency, which is critical for energy-sensitive applications.
- High Surge Current Capability: This component can withstand high surge currents, which makes it ideal for applications that experience frequent power surges or spikes.
- Dual Center Tap Configuration: The dual center tap configuration allows for flexibility in the design of multi-output power supplies.
- Low Leakage Current: The STPS2045CTC exhibits low leakage current, which reduces power consumption when in the off-state.
Applications
The STPS2045CTC is commonly used in a variety of applications, including:
- Switch-mode power supplies (SMPS)
- DC to DC converters
- Free-wheeling diodes in converters and motor control circuits
- Power factor correction circuits
- Reverse battery protection
Technical Specifications
Parameter
Value
Package/Case
TO-220AB
Max Repetitive Reverse Voltage (Vrrm)
45V
Average Rectified Current (Io)
20A
Forward Voltage (Vf)
0.55V at 10A
Operating Junction Temperature (Tj)
-40°C to +150°C
For detailed product information, datasheets, and support, visit the official STMicroelectronics website or contact your local authorized distributor.
