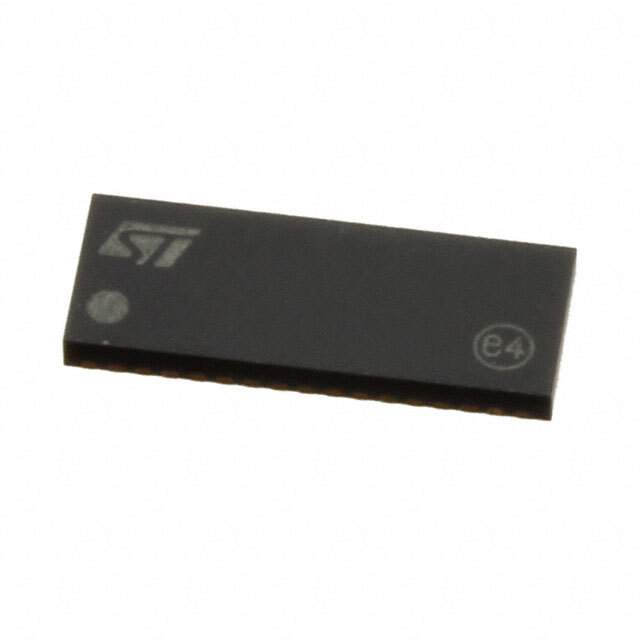

STMUX1800EQTR

Part No STMUX1800EQTR
Manufacturer STMicroelectronics
Catalog Interface - Analog Switches - Special Purpose
Description IC MUX/DEMUX 16X8 42QFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Applications Audio, Telecommunications, Video
Switch Circuit SPDT
Number of Channels 11
Max On Resistance 6.5 Ohm
Single Supply Voltage (V+) 3 V to 3.6 V
-3db Bandwidth 600MHz
Features 10/100/1000, Bi-Directional, LAN
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 42-QFN-EP (3.5x9)
Win Source Part Number 031439-STMUX1800EQTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STMUX1800EQTR CAD Model

Description

STMUX1800EQTR Multiplexer from STMicroelectronics

The STMUX1800EQTR is a state-of-the-art, low-voltage, 8:1 analog switch multiplexer/demultiplexer from STMicroelectronics. Designed to operate from 1.8V to 5.5V, this versatile component is suitable for a wide array of applications, including signal routing in portable consumer devices, data acquisition systems, and industrial process controls.

Key Features

  • Wide Voltage Range: The device supports a supply voltage range from 1.8V to 5.5V, making it compatible with most low-voltage applications and ensuring flexible usage across different voltage domains.
  • High Bandwidth: The STMUX1800EQTR offers a high bandwidth (BW) that ensures minimal signal distortion, enabling the transmission of high-speed signals without significant attenuation.
  • Low On-Resistance: With low on-resistance characteristics, the switch provides efficient signal transfer with minimal insertion loss, which is crucial for maintaining signal integrity.
  • Single Supply Operation: The device can operate with a single power supply, simplifying the power supply design and reducing the overall system complexity.
  • Break-before-make Switching: This feature ensures that one pathway is disconnected before a new connection is made, preventing cross-conduction and protecting the integrity of the signals.

Applications

  • Mobile Phones
  • PDAs and Handheld Devices
  • Signal Routing
  • Data Acquisition Systems
  • Industrial Process Controls

The STMUX1800EQTR is available in a compact QFN-16 package, which is ideal for space-constrained applications. Its robust design ensures reliable operation over a wide temperature range, making it a suitable choice for demanding environments. With its low power consumption and high switching speed, the STMUX1800EQTR is an excellent choice for designers looking to optimize their systems for both performance and power efficiency.

For detailed specifications, application notes, and further information, designers and engineers are encouraged to consult the datasheet and support documentation available from STMicroelectronics.
