Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM8L EnergyLite
Package Tray
Core Processor STM8
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, SPI, UART/USART
Peripherals Infrared, POR, PWM, WDT
Number of I/O 26
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
RAM Size 1.5K x 8
Supply Voltage - Operating 1.65V ~ 3.6V
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

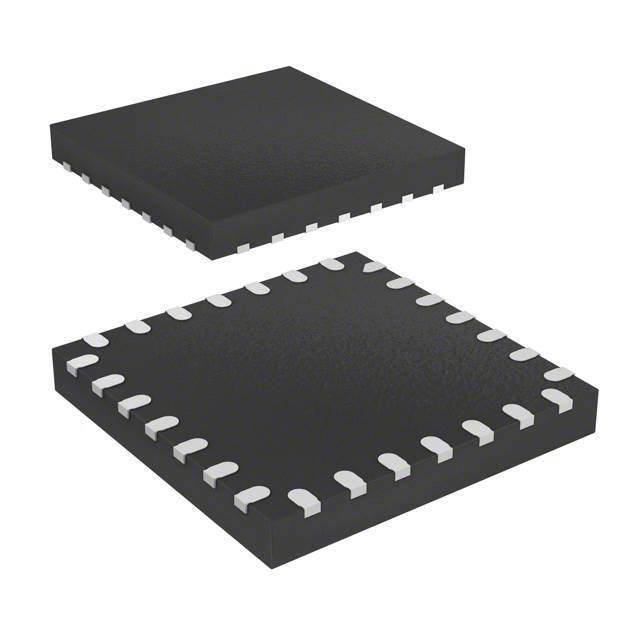

Package / Case 28-UFQFN
Supplier Device Package 28-UFQFPN (4x4)
Base Product Number STM8
Other Names STM8L101G2U6A,-497-11558,497-11558
Standard Package 490
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1262054-STM8L101G2U6A
Ultra Librarian 3D Model Ultra Librarian STM8L101G2U6A CAD Model

Description

STM8L101G2U6A Microcontroller by STMicroelectronics

The STM8L101G2U6A is a high-performance microcontroller from STMicroelectronics, designed to deliver robust performance in a variety of applications. This microcontroller is part of the STM8L ultra-low-power family, which is renowned for its excellent energy efficiency, making it an ideal choice for battery-operated devices and power-sensitive applications.

At the heart of the STM8L101G2U6A is an advanced 8-bit core, operating at a frequency of up to 16 MHz. The core is supported by 8 KB of Flash program memory, which is more than sufficient for small to medium-sized applications. Additionally, the microcontroller comes with 1 KB of RAM and 128 bytes of EEPROM, providing ample space for data storage and retention across power cycles.

The device features a rich set of peripherals that enhance its versatility. These include an integrated 12-bit analog-to-digital converter (ADC) for precise analog signal measurement, a 16-bit timer, and an 8-bit basic timer. These timers are crucial for managing time-dependent operations without burdening the core processor. There's also an I2C interface for serial communication, which is essential for connecting to other integrated circuits and sensors.

The STM8L101G2U6A operates within a supply voltage range of 2.95 to 5.5 volts, accommodating a variety of power sources. It also boasts a comprehensive set of power-saving modes, including Active, Halt, and Active Halt with full RAM retention, which significantly extend the battery life of the end application.

For enhanced security and system reliability, the microcontroller incorporates a unique ID number and a true data EEPROM with read-while-write support. Additionally, the device is housed in a UFQFPN20 package, which is known for its small footprint and low pin count, making it a perfect fit for space-constrained applications.

The STM8L101G2U6A is a testament to STMicroelectronics' commitment to providing high-quality, energy-efficient microcontrollers. Its combination of low power consumption, a robust set of features, and ease of integration make it an excellent choice for designers looking to optimize their embedded systems for power and performance.
