Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr STMicroelectronics
Package Tray
Type TxRx + MCU
RF Family/Standard 802.15.4
Protocol LoRa™
Modulation BPSK, GFSK, GMSK, FSK, MSK
Frequency 150MHz ~ 960MHz
Data Rate (Max) 300kbps
Power - Output 22dBm
Sensitivity -148dBm
Memory Size 256kB Flash, 64kB SRAM
Serial Interfaces ADC, GPIO, I²C, SPI, IrDA, UART, USART
GPIO 43
Voltage - Supply 1.8V ~ 3.6V
Current - Receiving 63mA ~ 68mA
Current - Transmitting 160mA ~ 310mA
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

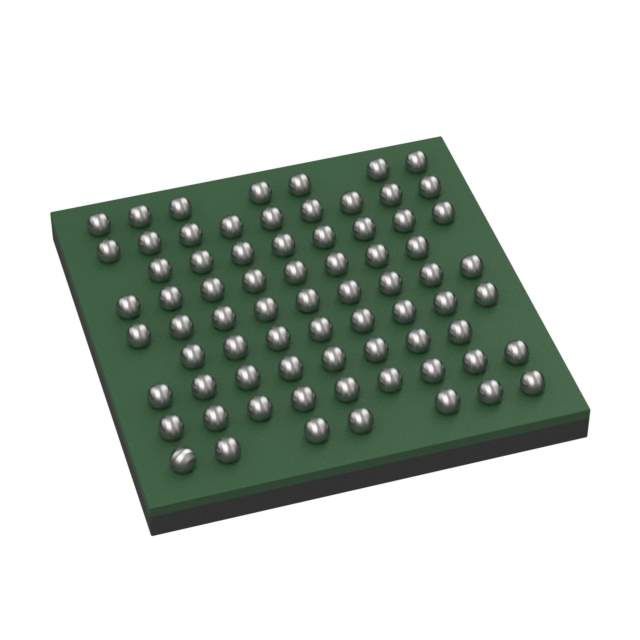

Package / Case 73-UFBGA
Supplier Device Package 73-UFBGA (5x5)
Base Product Number STM32
Other Names 497-STM32WLE5JCI6
Standard Package 490
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1235741-STM32WLE5JCI6
Ultra Librarian 3D Model Ultra Librarian STM32WLE5JCI6 CAD Model

Description

STMicroelectronics STM32WLE5JCI6 Ultra-Low-Power MCU

The STM32WLE5JCI6 from STMicroelectronics is a cutting-edge microcontroller that combines the power and flexibility of the STM32 family with advanced connectivity features. Designed for a wide range of applications, this product is particularly suited for the development of smart devices within the Internet of Things (IoT), providing both LoRa and (G)FSK modulation capabilities.

This microcontroller is part of the STM32WL series, the world's first wireless MCU with a built-in LoRa transceiver, which offers a unique combination of long-range wireless communication and ultra-low-power performance. The STM32WLE5JCI6 is based on an Arm® Cortex®-M4 core with a maximum frequency of 48 MHz, delivering a balanced blend of performance and energy efficiency.

With its integrated LoRa transceiver, the STM32WLE5JCI6 can achieve long-range wireless connectivity while maintaining low power consumption, making it ideal for remote sensors, environmental monitoring, smart metering, and a host of other IoT applications. The device also supports a wide range of other modulations, ensuring flexibility and adaptability to various communication protocols and standards.

Key features of the STM32WLE5JCI6 include:

  • Integrated LoRa transceiver supporting global LoRaWAN® networks
  • Multi-modulation capability: (G)FSK, BPSK, and proprietary protocols
  • 256 KB of Flash memory and 64 KB of SRAM
  • Ultra-low-power design for extended battery life
  • Highly secure with hardware encryption and RNG
  • Multiple power-saving modes for optimal energy management
  • Wide array of peripherals including ADCs, timers, and serial interfaces

The STM32WLE5JCI6 is also supported by the comprehensive STM32 ecosystem, which includes development tools, software libraries, and community resources to accelerate the design and development process. This support, combined with the MCU's robust feature set, makes the STM32WLE5JCI6 an excellent choice for developers looking to create innovative and efficient wireless solutions.

STMicroelectronics' commitment to quality and performance ensures that the STM32WLE5JCI6 is a reliable and powerful core for your next IoT project, enabling seamless integration of wireless connectivity with minimal power consumption.
