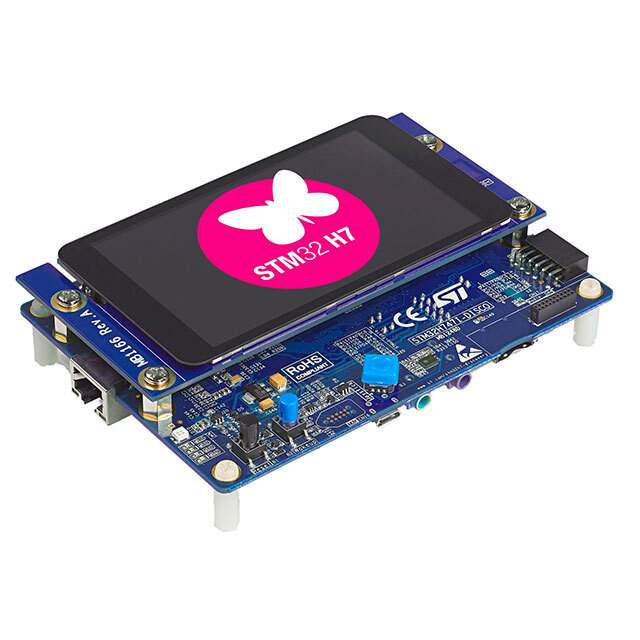

STM32H747I-DISCO Discovery Kit

The STM32H747I-DISCO Discovery kit from STMicroelectronics is a complete demonstration and development platform for the STM32H7 Series microcontrollers, which are among the most powerful MCUs in the STM32 family. Designed to help you unleash the full potential of the dual-core STM32H747XI microcontrollers, this kit is ideal for a wide range of applications, from industrial to consumer markets.

The Discovery kit boasts a STM32H747XI microcontroller, which combines a high-performance ARM Cortex-M7 core running up to 480 MHz with a Cortex-M4 core running up to 240 MHz. This unique dual-core architecture enables sophisticated functions, real-time tasks and rich graphics with high efficiency and great performance.

Key features of the STM32H747I-DISCO include:

• A 4-inch capacitive touch LCD display with MIPI-DSI connector and support for the optional add-on boards.
• On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port.
• Comprehensive free software libraries and examples available with the STM32CubeH7 MCU Package.
• Support for a wide range of development environments including IAR™, Keil®, and GCC-based IDEs.
• Flexible power-supply options with ST-LINK USB connector or external sources.
• On-board memory, including 128-Mbit Quad-SPI Flash memory and 128-Mbit SDRAM.
• Two audio jacks which provide an interface for audio input/output.
• Connectivity support with Ethernet compliant with IEEE-802.3-2002 and USB OTG HS with Micro-AB connectors.
• Four user LEDs and two push-buttons: one user and one reset.

This Discovery kit also includes an embedded ST-LINK debugger/programmer, so there's no need for a separate probe. You can jump straight into application development with direct access to ARM® mbed™ online resources and a wide range of integrated peripherals for exploring the features of the STM32H747XI microcontroller.

Whether you're a professional developer, a hobbyist, or a student, the STM32H747I-DISCO Discovery kit is a versatile and affordable way to get started with the high-performance STM32H7 microcontrollers. The kit provides everything needed for users to start developing their projects quickly and easily, making it an excellent tool for rapid prototyping and proof-of-concept creation.
