STM32F413MHY6TR Microcontroller - STMicroelectronics

The STM32F413MHY6TR is a cutting-edge microcontroller unit (MCU) from the renowned semiconductor manufacturer STMicroelectronics. This high-performance MCU is part of the STM32F4 series, which is famous for its advanced features and capabilities that cater to a wide range of applications including industrial control, medical equipment, and consumer electronics.

At the heart of the STM32F413MHY6TR lies an ARM® Cortex®-M4 core with a floating-point unit (FPU) which operates at a frequency of up to 100 MHz. The inclusion of the FPU enables the microcontroller to handle complex computations and signal processing operations with ease, making it an ideal choice for applications requiring intensive mathematical calculations.

The device comes with a rich set of peripherals that enhance its connectivity and control capabilities. These include up to 1.5 Mbytes of on-chip Flash memory, 320 Kbytes of SRAM, and an extensive range of I/O ports and interfaces. The interfaces include USB OTG Full-Speed and High-Speed, CAN, several SPI/I2S, UARTs, I2C, SDMMC, and more. For secure data operations, the STM32F413MHY6TR is equipped with a hardware cryptographic acceleration unit.

The STM32F413MHY6TR also features a flexible memory controller that supports Compact Flash, SRAM, PSRAM, NOR and NAND memories. Its LCD parallel interface has 8080/6800 modes, enabling direct connection to a wide range of LCDs. This MCU is also designed with power efficiency in mind, featuring multiple power-saving modes that help reduce overall power consumption.

For development support, STMicroelectronics offers an extensive ecosystem with software libraries, real-time operating systems (RTOS), and development tools. The STM32F413MHY6TR is fully supported by the STM32Cube software platform which includes the HAL (hardware abstraction layer), LL (low-layer) APIs, and middleware components.

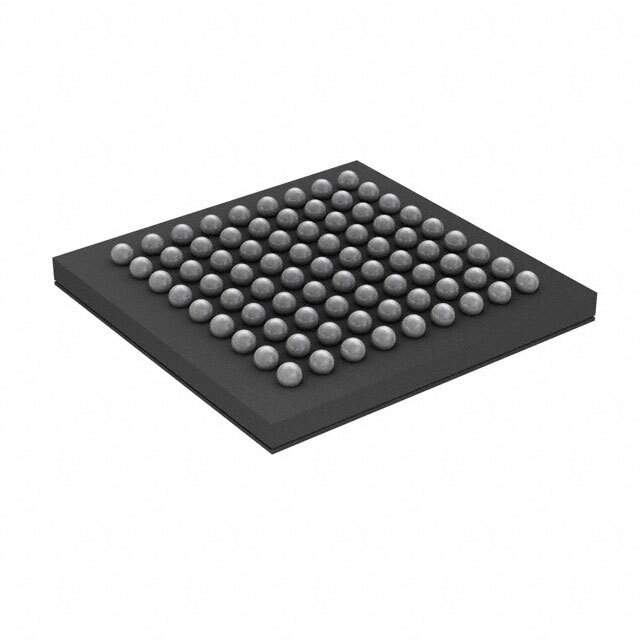

The MCU is available in a UFBGA176 package and is designed to operate over a wide temperature range, making it a robust and reliable choice for even the most demanding applications. With its advanced architecture, comprehensive feature set, and extensive support ecosystem, the STM32F413MHY6TR is an excellent choice for designers looking to create high-performance, feature-rich products.
