STM32F407IGH6 Microcontroller

The STM32F407IGH6 is a high-performance microcontroller from STMicroelectronics, designed to offer a perfect blend of power efficiency and speed for demanding applications. This device is based on the advanced ARM Cortex-M4 core with a floating-point unit, running at frequencies up to 168 MHz. It is part of the STM32F4 series, which is renowned for its dynamic efficiency, delivering the performance of Cortex-M processors with the low power consumption of the Cortex-M3.

Key Features:

• Core: ARM Cortex-M4 with FPU and DSP instructions, running at up to 168 MHz.
• Memory: 1 MB of Flash memory and 192+4 KB of SRAM, ensuring ample storage for complex programs and data.
• High-Performance: Achieves 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1) and has an Adaptive real-time accelerator (ART Accelerator™) which allows zero-wait-state execution from Flash memory.
• Connectivity: A range of connectivity options including three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, and two general-purpose 32-bit timers.
• Communication Interfaces: Equipped with up to three I2Cs, three SPIs, three USARTs, two UARTs, two CAN buses, and one USB OTG HS/FS.
• Advanced I/Os: Up to 140 I/O ports with interrupt capability that can be mapped to 16 external interrupt lines.
• Debugging Features: Serial wire debug (SWD) & JTAG interfaces, and Cortex-M4 Embedded Trace Macrocell™.
• Operating Conditions: Can operate at a voltage range of 1.8 V to 3.6 V and temperatures from -40°C to 85°C (or up to 105°C, depending on the case).

Applications:

The STM32F407IGH6 is ideal for a wide range of applications, including motor drive and application control, medical equipment, industrial applications such as PLCs, inverters, printers, and scanners, alarm systems, video intercom, and HVACs. Its rich set of peripherals and high processing capability make it suitable for complex and sophisticated applications that require multitasking and real-time responses.

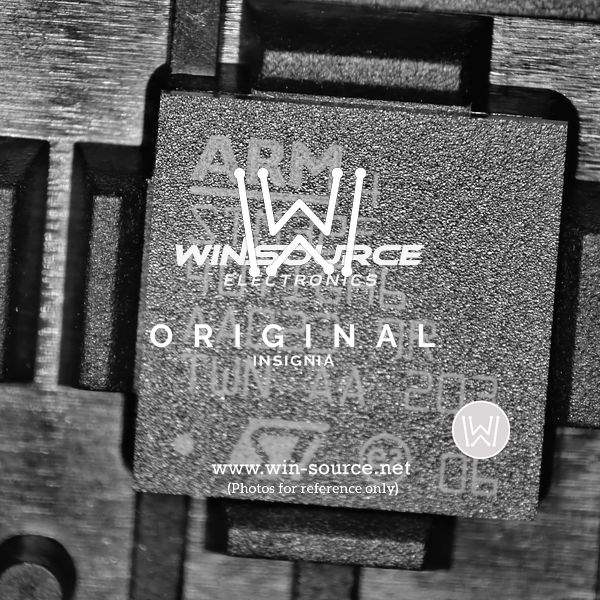

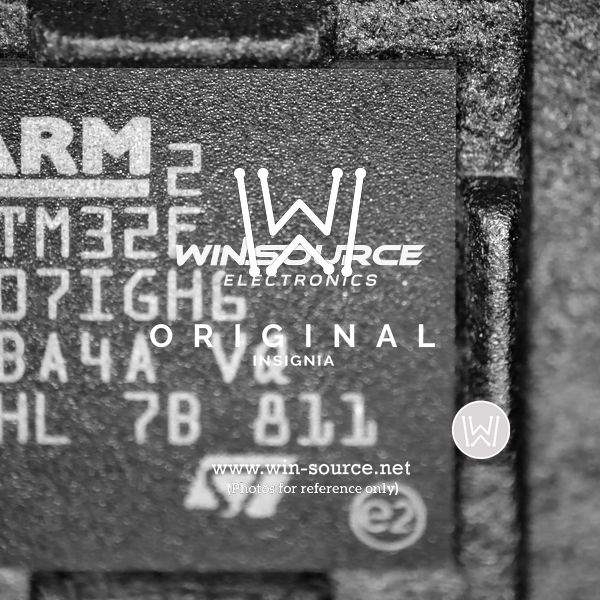

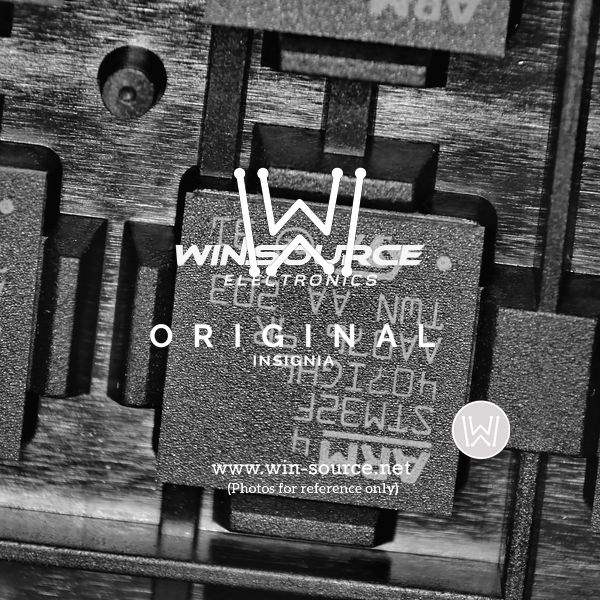

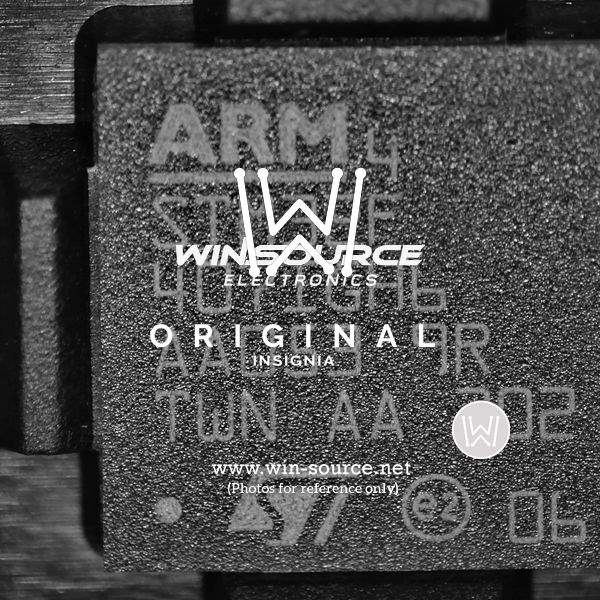

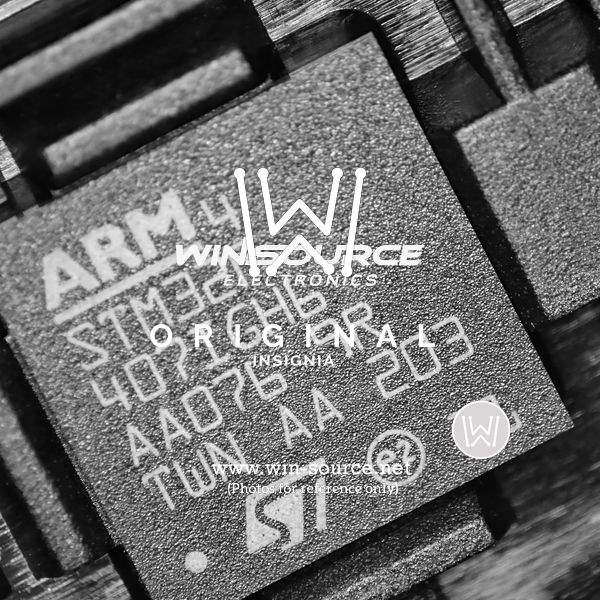

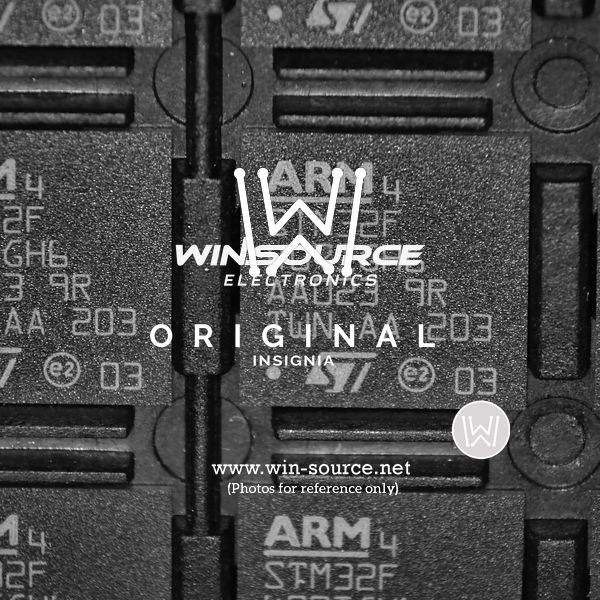

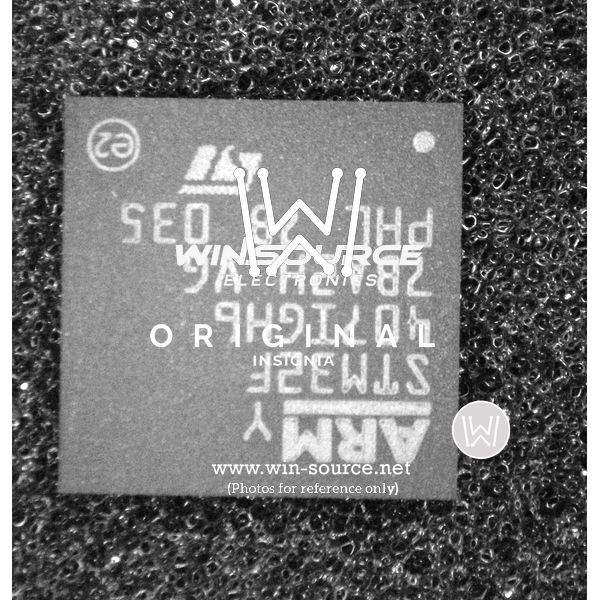

Package Information:

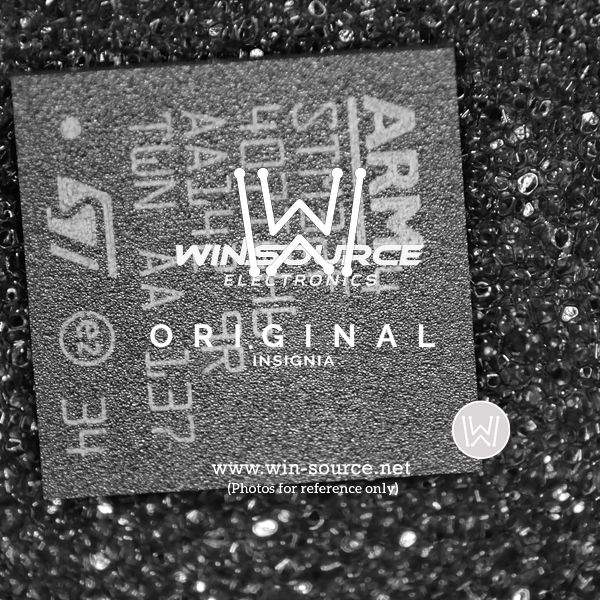

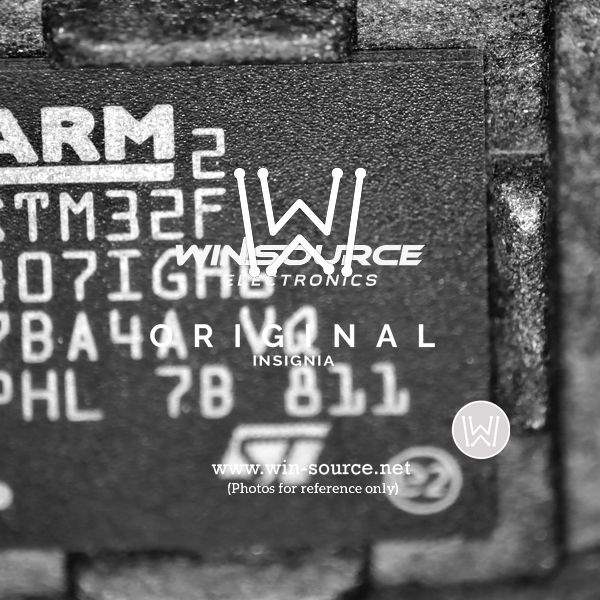

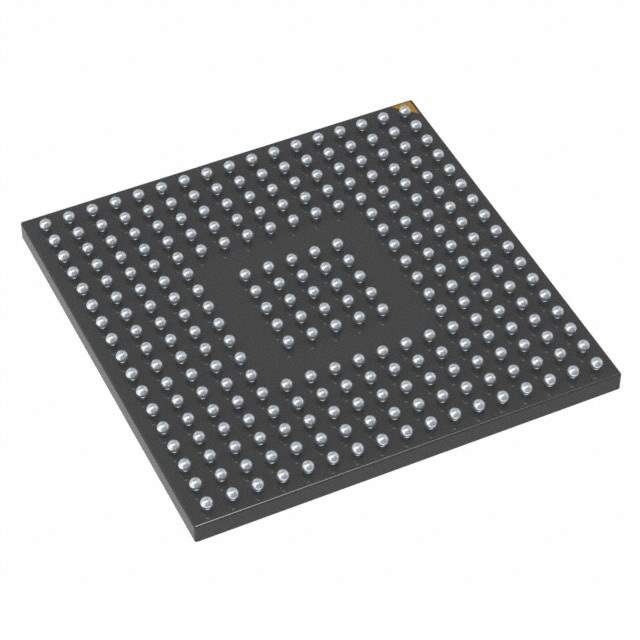

The microcontroller comes in a UFBGA176 package, offering a compact footprint for space-constrained applications while providing the necessary I/Os and features for robust system design.
