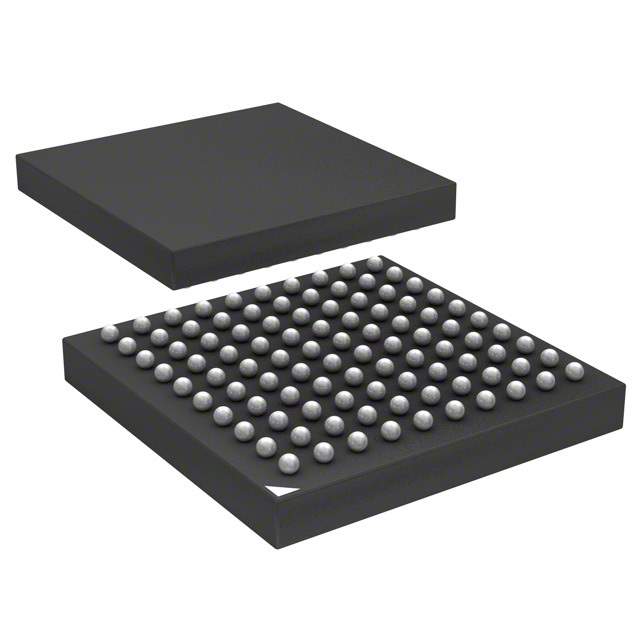

STM32F103VBH7 Microcontroller

The STM32F103VBH7 is a high-performance ARM Cortex-M3 based microcontroller from STMicroelectronics, designed to offer a balanced combination of computing power, reduced power consumption, and innovative peripherals. This microcontroller is part of the STM32F1 series, which is renowned for its robust architecture and the ability to perform in demanding applications.

With a maximum CPU frequency of 72 MHz, the STM32F103VBH7 provides ample processing capabilities for complex tasks, while its 128 KB of Flash memory and 20 KB of SRAM ensure sufficient space for storing code and running applications efficiently. This product is suitable for a wide range of applications, including industrial control systems, medical devices, and consumer electronics, thanks to its versatile feature set and connectivity options.

Key features of the STM32F103VBH7 include:

• Core: ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency.
• Memory: 128 KB of Flash memory and 20 KB of SRAM.
• Debugging: Embedded in-circuit debugging and programming via SWD (Serial Wire Debug) and JTAG interfaces.
• Connectivity: A rich set of I/Os and peripherals, such as USART, SPI, I2C interfaces, as well as USB 2.0 full-speed interface with CAN support.
• Analog: Multiple 12-bit ADCs, DAC channels, and general-purpose and advanced-control timers for versatile control applications.
• Power efficiency: Features such as Sleep, Stop, and Standby modes for power-saving strategies.
• Packages: Available in a 7x7 mm LQFP100 package, suitable for space-constrained applications.

The STM32F103VBH7 also supports an extensive set of power-saving modes, making it an excellent choice for battery-operated devices. Its robust peripheral set allows designers to integrate various functionalities without the need for additional components, reducing overall system cost and complexity.

STMicroelectronics provides comprehensive development tools and software libraries to support the STM32F103VBH7, ensuring a smooth development process from prototype to production. With its combination of performance, power efficiency, and integration, the STM32F103VBH7 is a reliable microcontroller solution for a broad spectrum of embedded applications.
