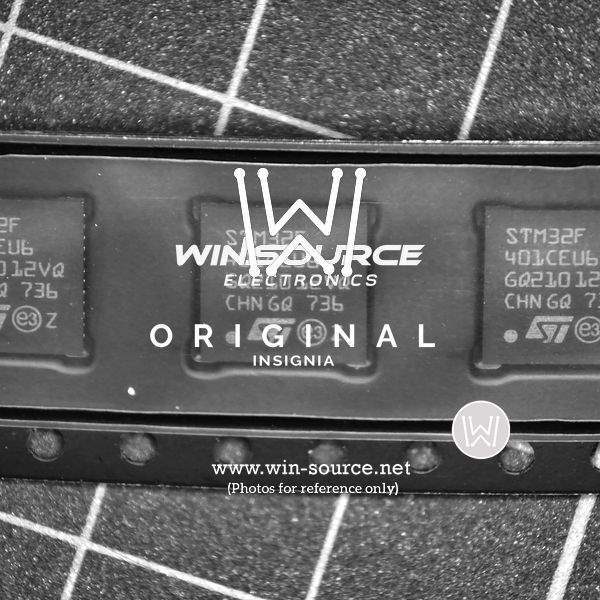

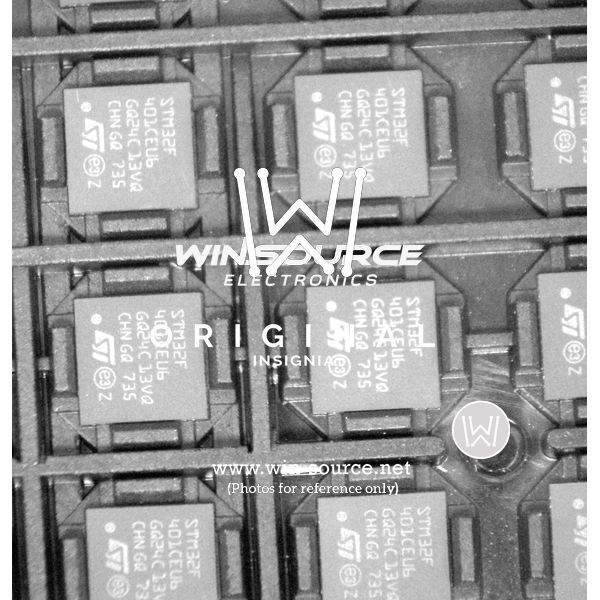

STM32F401CEU6: A High-Performance Microcontroller from STMicroelectronics

The STM32F401CEU6 is part of the STM32 F4 series of high-performance microcontrollers from STMicroelectronics. This advanced microcontroller is designed to offer a perfect balance between performance, power efficiency, and integration, making it an ideal choice for a wide range of applications in the industrial, medical, and consumer electronics sectors.

Key Features

• Core: ARM Cortex-M4 with Floating Point Unit (FPU) and DSP instructions.
• Max Frequency: 84 MHz, which ensures high processing power for complex algorithms and fast task execution.
• Memory: 512 KB of Flash memory and 96 KB of SRAM, providing ample space for code and data storage.
• I/O Pins: Rich set of I/O options with various communication interfaces including I2C, SPI, USART, and USB 2.0.
• ADCs: 12-bit Analog-to-Digital Converters with up to 16 channels for accurate sensor readings and analog data processing.
• Timers: Advanced-control, general-purpose, and basic timers for precise timing operations and PWM generation.
• Low Power Consumption: Multiple power modes including a low-power run mode, sleep mode, and standby mode for energy-saving operations.
• Package: Ultra-compact 48-pin UFQFPN package, suitable for space-constrained applications.

Applications

The STM32F401CEU6 is highly versatile and can be used in various application scenarios, such as:

• Advanced motor control systems
• Medical equipment like portable health monitors
• Wearable devices with stringent power constraints
• Complex IoT devices requiring robust processing capabilities
• High-performance embedded systems

Development and Software Support

STMicroelectronics provides extensive development support for the STM32F401CEU6 with its comprehensive STM32Cube software suite, which includes HAL libraries, middleware components, and examples. Additionally, the microcontroller is supported by a wide range of development tools, including the STM32 Nucleo boards and the ST-LINK/V2 in-circuit debugger/programmer, simplifying the development process and reducing time to market.

With its high-performance core, rich set of peripherals, and low power consumption, the STM32F401CEU6 is a powerful and flexible microcontroller solution designed to meet the needs of demanding applications.
