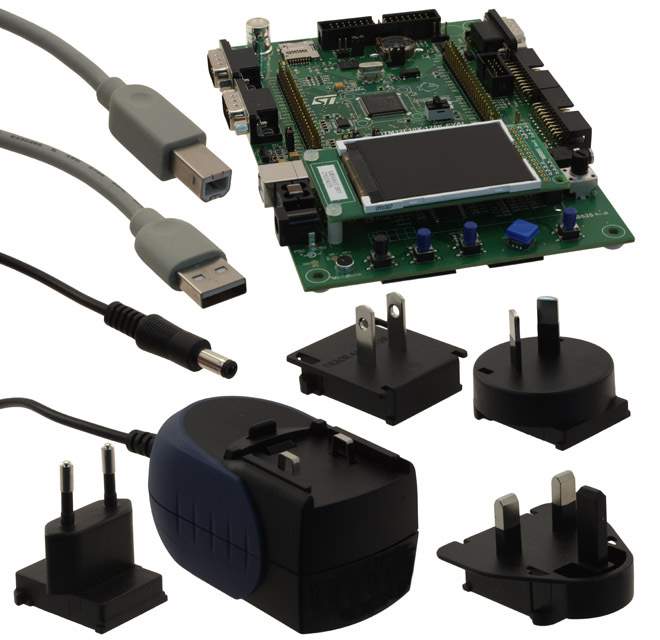

STM3210B-EVAL Evaluation Board

The STM3210B-EVAL from STMicroelectronics is a comprehensive evaluation platform designed specifically for the STM32F103 high-density performance line microcontroller family. This evaluation board provides an ideal environment for engineers to explore the capabilities and features of the STM32F103 microcontroller, which boasts a 32-bit ARM Cortex-M3 core.

Featuring a range of embedded peripherals, the STM3210B-EVAL is designed to demonstrate the performance and versatility of the STM32F103 series. It includes a variety of connectors and support for audio, full-speed USB, CAN, and other communication interfaces. This makes it particularly suitable for prototyping applications in industrial control, medical systems, access control, and point-of-sale.

Key components of the STM3210B-EVAL include:

• A 3.2-inch 240x320 pixel QVGA TFT color LCD with touchscreen, which provides a vibrant interface for user interaction and data display.
• An embedded ST-LINK debugger/programmer for streamlined debugging and programming without the need for additional hardware.
• Multiple communication interfaces such as USB OTG, CAN, USART, I2C, SPI, and an SDIO interface for expandable storage options.
• Integrated analog features with ADC channels, DAC, and support for direct digital camera interface for image acquisition.
• An infrared receiver and a serial wire debug (SWD) interface for comprehensive testing and development.

The board also includes a variety of expansion headers, which provide an easy way to connect to external components or modules for further experimentation. The comprehensive set of software examples available helps to reduce development time and supports engineers in getting the most out of the STM32 microcontroller's capabilities.

With its rich set of features and extensive support material, the STM3210B-EVAL stands as a robust platform for developers looking to harness the power of the STM32 microcontroller for their next project. Whether it's for developing sophisticated industrial applications or innovative consumer products, the STM3210B-EVAL provides the tools necessary to realize your vision.
