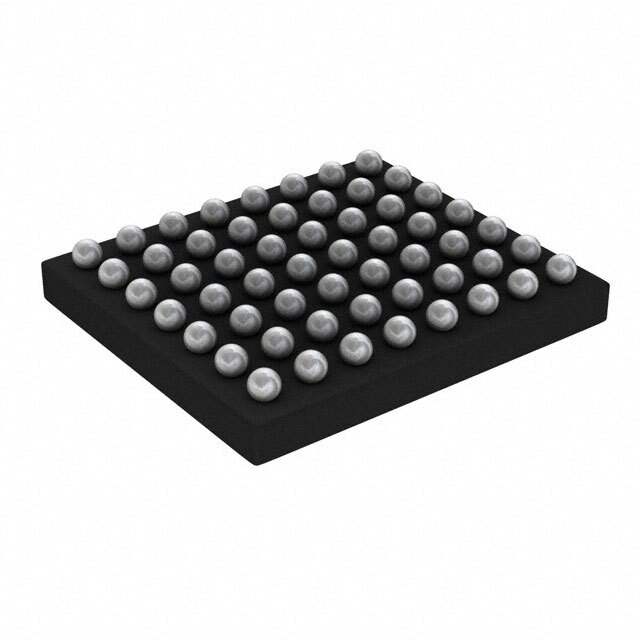

STLED524 Intelligent Matrix LED Display Driver

The STLED524 from STMicroelectronics is a sophisticated LED display driver that is specifically designed to manage matrix and digit based LED applications. This integrated circuit is capable of driving up to 5x24 or 4x36 individual LEDs, which makes it an excellent choice for a wide range of applications that require dynamic and eye-catching visual displays.

One of the key features of the STLED524 is its built-in memory, which allows it to store and display a variety of pre-set patterns or custom animations. This makes it incredibly easy to create engaging displays without the need for constant microcontroller intervention. Its I²C-compatible serial interface ensures that it can be easily controlled by a wide range of microcontrollers or processors, offering flexibility in system design.

The STLED524 also supports a wide voltage range, from 3.3V to 5V, which means it can be used in both low-voltage and standard applications. Its current regulation feature ensures consistent brightness for the LEDs, which is crucial for maintaining a uniform appearance in consumer products. Furthermore, the device includes features such as open LED detection, which helps to identify and diagnose any potential issues with the LED array, ensuring reliable operation over time.

Designed with versatility in mind, the STLED524 is ideal for creating scrolling messages, animated signs, and dynamic lighting effects in products such as home appliances, industrial displays, point of sale terminals, and much more. Its compact SSOP24 package allows it to be used in space-constrained applications, while still providing the robustness and performance expected from STMicroelectronics' products.

Whether you're developing a new product or upgrading an existing one, the STLED524 offers a combination of ease of use, reliability, and visual appeal that can enhance any LED display project.
