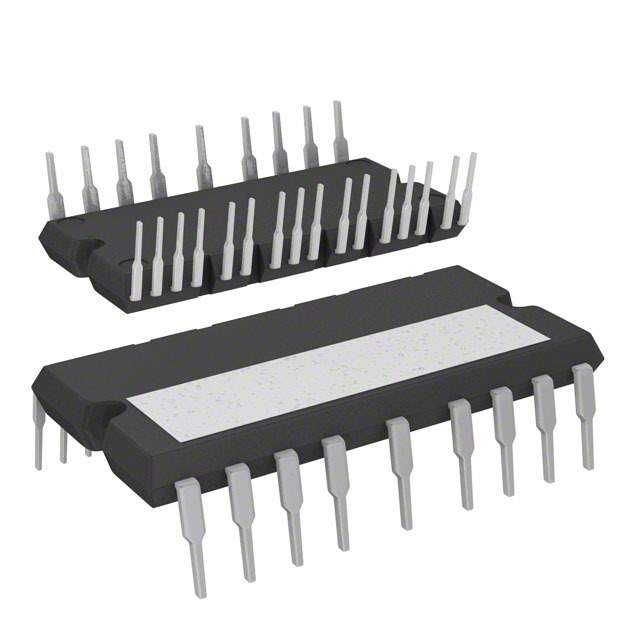

STGIPS15C60T-H - A Robust IGBT Intelligent Power Module from STMicroelectronics

The STGIPS15C60T-H is a cutting-edge Intelligent Power Module (IPM) designed and manufactured by STMicroelectronics, a global semiconductor leader. This module is part of the SLLIMM™ (Small Low-Loss Intelligent Molded Module) family, specifically the second series, and it offers a highly efficient, compact, and reliable solution for advanced motor drive applications such as those found in washing machines, fans, and other home appliances.

At the heart of the STGIPS15C60T-H is a three-phase inverter consisting of six IGBTs with an operational voltage of up to 600V, allowing it to handle a significant amount of power and voltage. The module is capable of providing a continuous collector current of 15A, with a low saturation voltage to minimize conduction losses, thereby enhancing overall system efficiency.

The IPM integrates a variety of features that make it exceptionally user-friendly and safe to use. It includes a built-in temperature sensor and over-current protection, which work together to prevent damage from overheating or excessive current conditions. Additionally, the module contains an Under-Voltage Lockout (UVLO) feature for both the high-side and low-side channels, ensuring the device operates within safe voltage levels.

One of the standout features of the STGIPS15C60T-H is its advanced input filter, which is designed to match the noise sensitivity of the system. This results in improved Electromagnetic Interference (EMI) performance, which is crucial for meeting regulatory standards and ensuring the reliability of the final product.

The module is housed in a highly insulated package that is optimized for excellent thermal performance and simplified circuit design. The package is designed to be easily mounted onto a heatsink, providing effective heat dissipation for enhanced durability and long-term reliability.

Overall, the STGIPS15C60T-H represents a powerful solution for designers looking to improve the performance and efficiency of their motor drive systems. Its integration of multiple protection features, along with its high power handling capabilities and EMI performance, make it an ideal choice for a wide range of applications.
