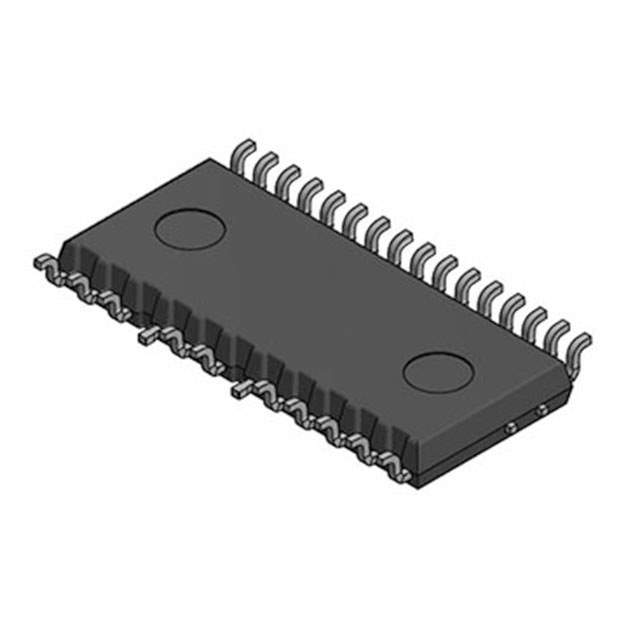

STGIPNS3H60T-H - STMicroelectronics

The STGIPNS3H60T-H is a cutting-edge power integrated module from STMicroelectronics, designed to offer an efficient and compact solution for advanced motor drive applications. This intelligent power module (IPM) combines IGBTs, freewheeling diodes, and a variety of protection features into a single package, providing a highly integrated solution that simplifies design and enhances overall system reliability.

Key Features

• Advanced IGBT Technology: Utilizes STMicroelectronics' latest IGBTs to ensure high efficiency and excellent thermal performance, suitable for a wide range of switching frequencies.
• Integrated Freewheeling Diodes: Each IGBT is paired with a fast recovery diode, optimized for low conduction and switching losses, which is critical for high-efficiency power conversion.
• Compact Design: The module's small footprint allows for a reduction in the size of the overall power system, making it ideal for applications where space is at a premium.
• Over-Temperature Protection: Features built-in temperature sensing for real-time monitoring, ensuring the module operates within safe temperature ranges and prolongs the lifespan of the device.
• Short-Circuit Rated IGBTs: Provides robust protection against short-circuit conditions, enhancing system safety and reliability.
• Under-Voltage Lockout: Ensures that the module operates correctly by monitoring the supply voltage and preventing operation under low-voltage conditions.

Applications

The STGIPNS3H60T-H is ideally suited for a variety of high-performance applications, including:

• High-efficiency motor drives
• Appliances such as washing machines and refrigerators
• Fans and pumps
• Industrial automation systems
• Renewable energy systems, including solar inverters

Conclusion

Overall, the STGIPNS3H60T-H from STMicroelectronics represents a highly integrated, robust solution for designers seeking to improve the performance and reliability of their motor drive systems. With its advanced features and compact design, this power integrated module is set to make a significant impact in the world of power electronics.
