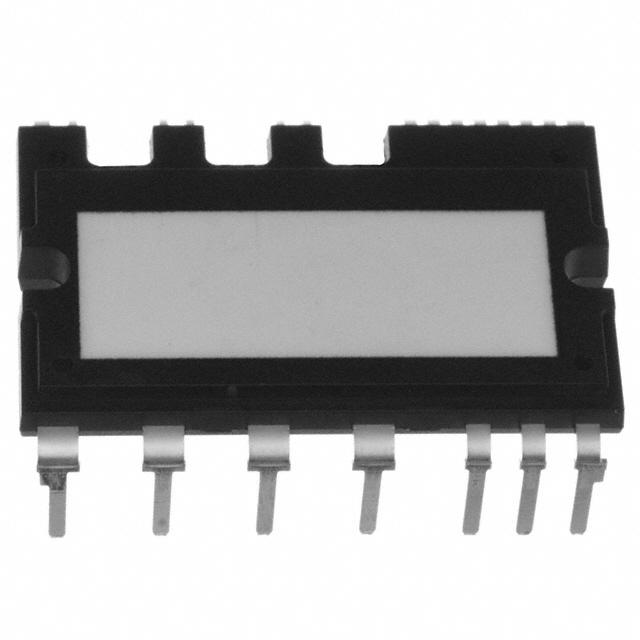

FSBS15CH60F Fairchild/ON Semiconductor FSBS15CH60F real image FSBS15CH60F real image 2
Same model may have multiple batches, images only for reference.
FSBS15CH60F Fairchild/ON Semiconductor FSBS15CH60F real image FSBS15CH60F real image 2
FSBS15CH60F Fairchild/ON Semiconductor FSBS15CH60F real image FSBS15CH60F real image 2
Same model may have multiple batches, images only for reference.

FSBS15CH60F

Part No FSBS15CH60F
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description MODULE SPM 600V 15A SPM27-BA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Active
Type IGBT
Configuration 3 Phase
Current 15A
Voltage 600V
Isolation Voltage 2500Vrms
Dimension 27-PowerDIP Module (1.205", 30.60mm)
Win Source Part Number 109083-FSBS15CH60F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 60
Ultra Librarian 3D Model Ultra Librarian FSBS15CH60F CAD Model

Description

The FSBS15CH60F is an IGBT with a voltage rating of 600V and a current rating of 15A. It features a 3-phase configuration and an isolation voltage of 2500Vrms.

  • Manufacturer: Fairchild/ON Semiconductor
  • Package: 27-PowerDIP Module (1.205", 30.60mm)
  • Quantity: 60 pcs
