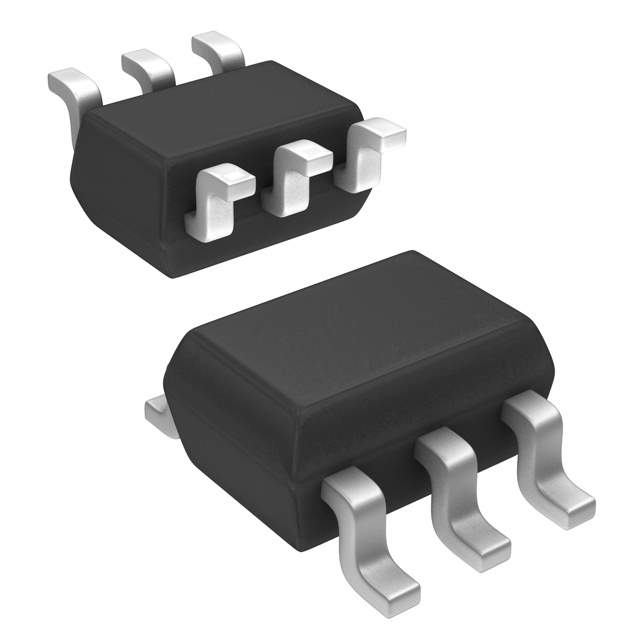

The STG3157CTR is a high-performance, low-power single-pole, double-throw (SPDT) analog switch that is part of STMicroelectronics' extensive switch portfolio. This device is designed to serve a broad range of applications including signal routing in both analog and digital domains. It is particularly suited for use in portable consumer electronics, data acquisition systems, and communication devices.

Key Features

• Wide Operating Voltage: The STG3157CTR operates over a wide range of supply voltages from 1.65V to 4.3V, making it versatile for various circuit designs and compatible with many logic levels.
• Low Power Consumption: With its low power consumption, this switch is ideal for battery-operated devices, ensuring minimal impact on battery life.
• High Switching Speed: The device offers fast switching times, with a typical break-before-make interval, which is crucial for applications requiring rapid signal switching.
• Low Charge Injection: The low charge injection feature minimizes signal distortion during switching, preserving signal integrity for precision applications.
• High Bandwidth: The STG3157CTR provides a high bandwidth, enabling it to pass high-frequency signals without significant attenuation, thus maintaining signal fidelity.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is integrated into the device, safeguarding it against damage from static electricity.

Applications

The STG3157CTR's robust design and reliable performance make it suitable for a diverse range of applications, including:

• Audio and video signal routing
• Cellular phones and PDAs
• Portable medical devices
• Data acquisition systems
• Communication systems
• Test equipment

STMicroelectronics' commitment to quality and innovation ensures that the STG3157CTR is a reliable choice for designers looking to incorporate a high-performance analog switch into their electronic designs. With its small package size, the STG3157CTR is also an excellent choice for space-constrained applications.
