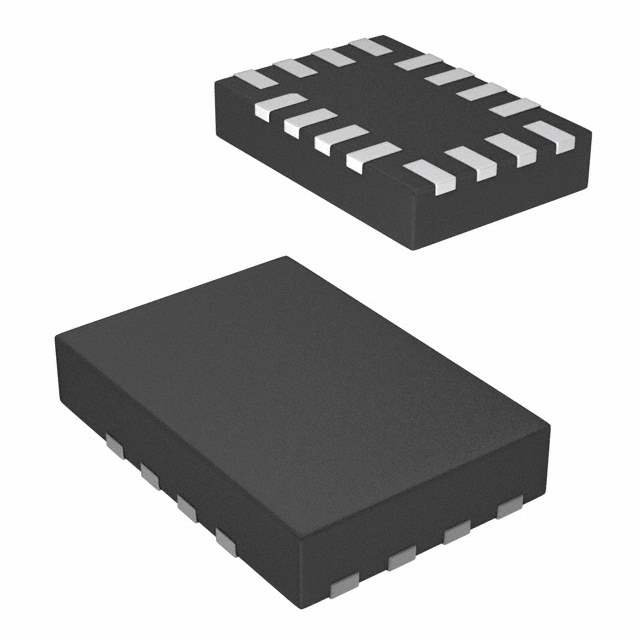

FSA2467UMX Real Image
Same model may have multiple batches, images only for reference.

FSA2467UMX

Part No FSA2467UMX
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL DPDT 16UMLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Switch Circuit DPDT
Number of Circuits 2
Max On Resistance 400 Ohm (Typ)
Channel-to-Channel Matching (ΔRon) 40 mOhm (Min)
Single Supply Voltage (V+) 1.65 V to 4.3 V
Max Switch Time (Ton,Toff) 50ns, 32ns
-3db Bandwidth 85MHz
Charge Injection 15pC
Channel Capacitance(CS off, CD off) 32pF
Max Leakage Current (IS off) 10nA
Crosstalk -75dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-UMLP (1.8x2.6)
Win Source Part Number 136723-FSA2467UMX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FSA2467UMX CAD Model

Description

This Fairchild/ON Semiconductor electronic component is a medium popularity product.

  • Win Source Part Number: 136723-FSA2467UMX
  • Supply and Demand: Balanced
  • Switch Circuit: Double Pole Double Throw (DPDT)
  • -3db Bandwidth: 85MHz
  • Max On Resistance: 400 Ohm (Typ)
  • Max Switch Time (Ton): 50ns
  • Max Switch Time (Toff): 32ns
  • Channel Capacitance (CS off, CD off): 32pF
  • Package: 16-UMLP (1.8x2.6)
  • Operating Temperature: -40°C to 85°C (TA)
