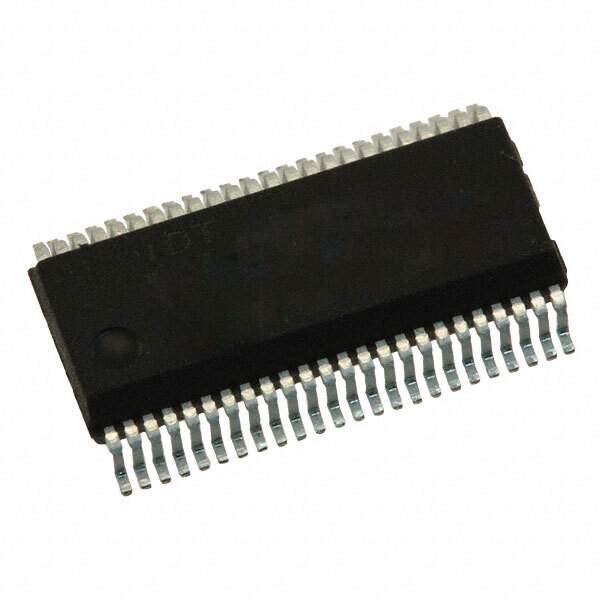

QS4A215Q1G8 Real Image
Same model may have multiple batches, images only for reference.

QS4A215Q1G8

Part No QS4A215Q1G8
Manufacturer IDT, Integrated Device Technology Inc
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC MUX/DEMUX DUAL 4X1 48QVSOP / Analog Multiplexer Hex 4:1 48-Pin QVSOP T/R
Datasheet
QS4A215Q1G8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IDT, Integrated Device Technology Inc
Packaging Reel package
Switch Circuit SP4T
Number of Circuits 2
On-State Resistance (Maximum) 17 Ohm
Operating Supply Voltage 5V
Switch Time (Ton, Toff) (Maximum) 6ns, 6ns
-3db Bandwidth 700MHz
Charge Injection 1.5pC
Channel Capacitance (CS(off), CD(off)) 6pF, 14pF
Current - Leakage (IS(off)) (Maximum) 10nA
Crosstalk -68dB @ 5MHz
Operating Temperature Range -40°C ~ 85°C (TA)
Package 48-FSOP (0.154", 3.90mm Width)
Manufacturer Package 48-QSOP
Win Source Part Number 792824-QS4A215Q1G8
Popularity Medium
Supply and Demand Status Balance
Family Name QS4A215
Introduction Date August 01, 2000
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian QS4A215Q1G8 CAD Model

Description

The QS4A215Q1G8 is a SP4T switch circuit with a -3db bandwidth of 700MHz.

  • Charge Injection: 1.5pC
  • Crosstalk: -68dB @ 5MHz
  • Package: 48-FSOP (0.154", 3.90mm Width)
  • Dual Voltage Supply: Yes
  • On-State Resistance (Maximum): 17 Ohm
  • Switch Time (Ton, Toff) (Maximum): 6ns, 6ns
  • Current Leakage (IS(off)) (Maximum): 10nA
  • Series: QS4A215
  • Category: Integrated Circuit (IC)
  • Halogen Free: Yes
  • Popularity: Medium
  • Estimated EOL Date: 2028
