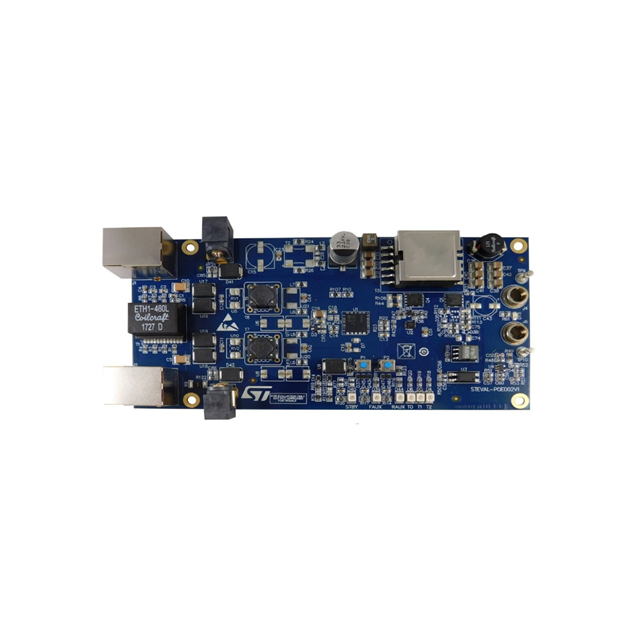

Introducing the STEVAL-POE002V1 from STMicroelectronics

The STEVAL-POE002V1 is a cutting-edge Power over Ethernet (PoE) evaluation board designed and manufactured by the renowned STMicroelectronics. This advanced product is tailored for developers and engineers who are looking to explore the capabilities of PoE technology in their applications. The board is based on the IEEE 802.3af and IEEE 802.3at standards, which ensures compatibility with a wide range of devices and systems.

Embedded with the PM8805 integrated PoE-PD interface and PWM controller, the STEVAL-POE002V1 is capable of receiving up to 30W of power over a standard Ethernet cable. This eliminates the need for additional power supplies, reducing costs, and simplifying installation. The board also features an auxiliary power supply option, which provides flexibility in power-source selection.

The STEVAL-POE002V1 is equipped with numerous protection features to ensure the safety and reliability of the connected devices. These include under-voltage lockout (UVLO), thermal protection, and overvoltage protection, which safeguard the board and its connected loads from electrical hazards.

Designed for ease of use, the evaluation board comes with an RJ45 connector for immediate connection to a PoE network. It also includes a set of configurable jumpers and test points that allow for detailed monitoring and adjustment of the board's performance. This makes the STEVAL-POE002V1 an ideal platform for prototyping and testing PoE-based designs before moving to production.

The board's compact form factor and comprehensive documentation make it an accessible and informative tool for both beginners and experienced professionals. Whether you are developing IoT devices, network cameras, wireless access points, or any other PoE-enabled application, the STEVAL-POE002V1 provides a reliable and convenient starting point for your design and testing processes.

With the STEVAL-POE002V1, STMicroelectronics continues to demonstrate its commitment to innovation and quality in the field of power management solutions. Take advantage of this versatile evaluation board to streamline your development workflow and bring efficient, PoE-powered products to market faster.
