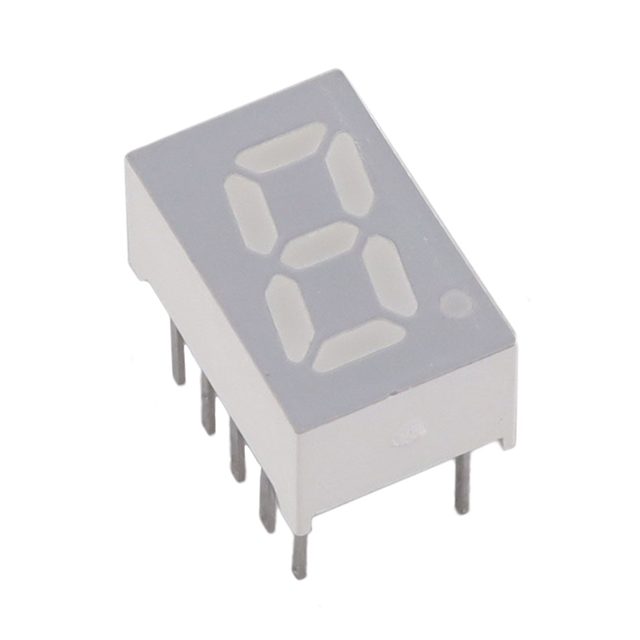

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category OptoelectronicsLED Character and Numeric
Manufacturer Broadcom Limited
Packaging Bulk
Part Status Active
Number of Characters 1
Size / Dimension 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm)
Digit/Alpha Size 0.31" (8.00mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Orange
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Millicandela Rating 5.39mcd
Wavelength - Peak 600nm
Power Dissipation (Max) 105mW
Package / Case 10-DIP (0.209", 5.30mm)
Base Product Number HDSP-U4
Ultra Librarian 3D Model Ultra Librarian HDSP-U413 CAD Model
