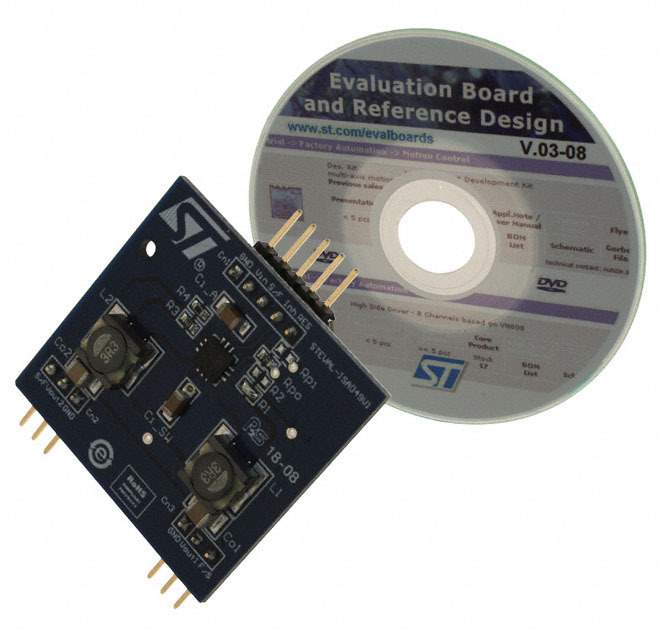

STEVAL-ISA049V1 Evaluation Board from STMicroelectronics

The STEVAL-ISA049V1 is a highly efficient, compact, and versatile evaluation board designed by STMicroelectronics for testing and prototyping with their advanced power management solutions. This evaluation board is specifically tailored for the L7987, a robust and flexible step-down switching regulator capable of delivering up to 3 A of continuous current to the load.

The board operates over a wide input voltage range from 4.5 V to 61 V, making it suitable for a broad spectrum of applications, including industrial, automotive, and consumer electronics. The L7987 regulator integrated into the STEVAL-ISA049V1 is notable for its high efficiency, which can reach up to 95%, thereby minimizing energy loss and heat generation during operation.

Features of the STEVAL-ISA049V1 include an adjustable output voltage that can be set from 0.8 V to VIN, thanks to the onboard feedback network. The evaluation board also provides a range of protection features to ensure the longevity and reliability of both the board and the end application. These include overcurrent protection, thermal shutdown, and overvoltage protection.

The compact size of the STEVAL-ISA049V1 evaluation board, along with its pre-installed heat sink, makes it easy to integrate into a variety of design spaces. The board comes equipped with test points that facilitate easy measurement of the regulator's performance parameters, such as efficiency, output voltage ripple, and transient response.

Developers and engineers can benefit from the STEVAL-ISA049V1 evaluation board's flexibility and convenience, as it significantly reduces the time and effort required to assess the L7987 regulator and implement it into their own designs. The board is particularly useful for rapid prototyping, helping to accelerate the development cycle from initial concept to finished product.

Overall, the STEVAL-ISA049V1 is an excellent tool for anyone looking to harness the power and efficiency of the L7987 switching regulator in their next project, ensuring a smooth and successful design process.
