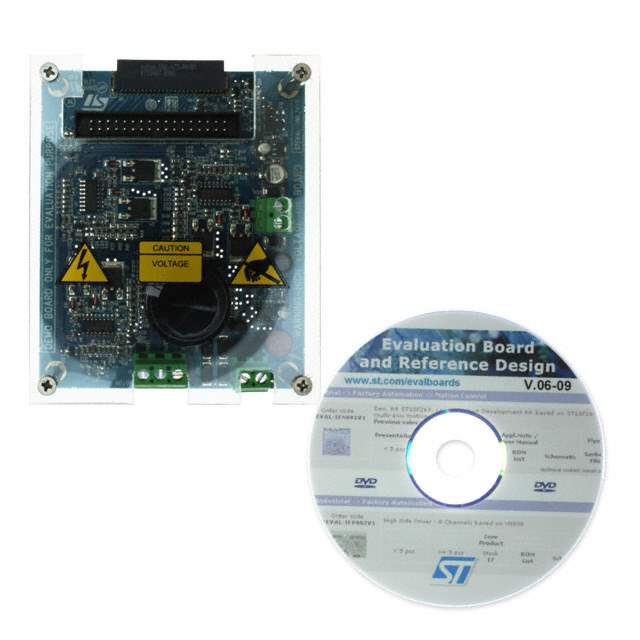

STEVAL-IHM024V1 - Low Voltage Three-Phase Inverter Power Board

The STEVAL-IHM024V1 from STMicroelectronics is a high-performance, low-voltage, three-phase inverter power board that is designed for applications requiring precise motor control. This product is part of the motor control series that aims to facilitate the development of motor driving solutions for a wide range of low-voltage applications, such as drones, electric scooters, and robotics.

Key Features:

• Based on the advanced STGIPN3H60 - a smart power module (SPM) integrating power MOSFETs and gate drivers.
• Capable of operating at a supply voltage ranging from 10V to 20V, making it suitable for battery-powered applications.
• Supports up to 3A of output current, enabling it to drive a wide range of low-voltage motors.
• Embedded overcurrent and overtemperature protection features for improved safety and reliability.
• Compact and efficient design, with an optimized layout for thermal performance and space-saving considerations.
• Compatible with a variety of control strategies, including six-step, sinusoidal, and field-oriented control (FOC).

Applications:

• Low-voltage motor control in consumer and industrial applications.
• Unmanned aerial vehicles (UAVs) and other battery-operated vehicles.
• Portable and handheld power tools.
• Robotics and automation systems.

The STEVAL-IHM024V1 is an ideal solution for designers looking for an integrated, ready-to-use inverter for rapid prototyping and development. Its ease of use and advanced features enable developers to create sophisticated motor control systems quickly and efficiently. This product, backed by STMicroelectronics' comprehensive technical documentation and support, ensures a seamless integration into your next motor control project.
