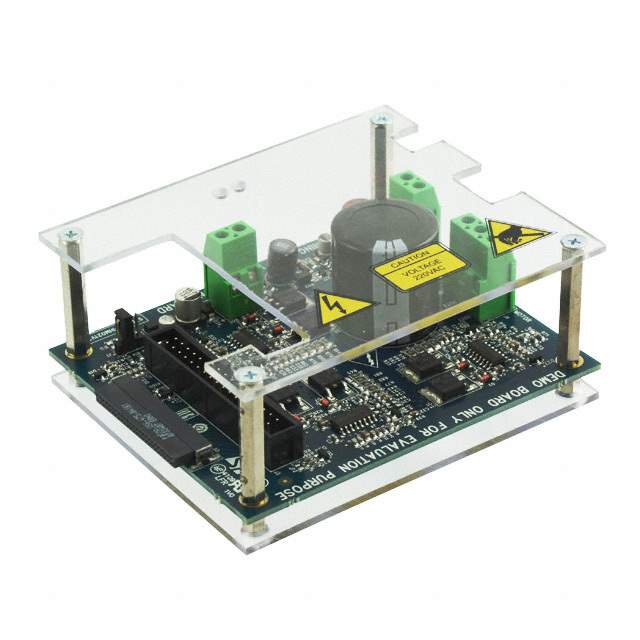

STEVAL-IHM021V2 - Dual Motor Control Evaluation Board from STMicroelectronics

The STEVAL-IHM021V2 is an advanced evaluation board designed by STMicroelectronics for dual motor control applications. This cutting-edge board is tailored to facilitate the development and testing of various motor control solutions, particularly focusing on dual Field Oriented Control (FOC) of Permanent Magnet Synchronous Motors (PMSM). It is an integral part of ST's motor control ecosystem, providing engineers and developers with a versatile platform to create efficient and high-performance motor control systems.

At the heart of the STEVAL-IHM021V2 lies the powerful STM32F103 microcontroller, which is based on a high-performance ARM Cortex-M3 core. The microcontroller is equipped with all the necessary interfaces and peripherals to manage motor control algorithms effectively. The board supports a wide range of input voltages, from 8 V to 48 V, making it suitable for a variety of industrial and consumer applications.

The evaluation board is designed with flexibility in mind, featuring two STMicroelectronics L6230 motor driver ICs that provide a fully-integrated solution for driving two PMSM motors. These drivers offer a comprehensive set of protections, including overcurrent, overtemperature, and short-circuit protection, ensuring reliable operation under various conditions.

For precise motor control, the STEVAL-IHM021V2 includes advanced features such as real-time current sensing and field-weakening capability, which allows motors to operate at speeds beyond their nominal ratings. The board also provides a user-friendly interface with multiple control options, including potentiometers for speed and torque adjustments, as well as connectors for external control devices.

Developers can take advantage of the extensive software libraries and example codes provided by STMicroelectronics, which significantly ease the development process. The STEVAL-IHM021V2 is also compatible with a wide range of development tools and software suites, including the STM32Cube ecosystem, making it an ideal choice for rapid prototyping and product development.

Whether you are working on a professional-grade industrial drive, a home appliance, or an innovative robotics project, the STEVAL-IHM021V2 evaluation board provides a robust and versatile foundation for your dual motor control solutions.
