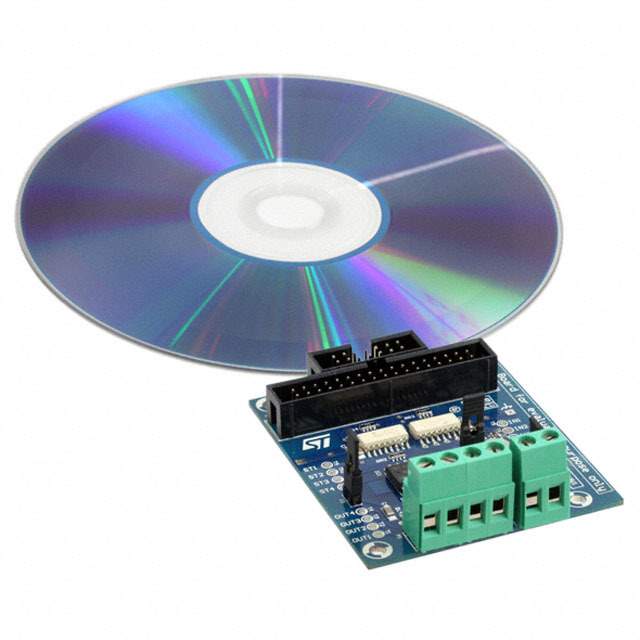

STEVAL-IFP019V1 - USB Interface Evaluation Board

The STEVAL-IFP019V1 from STMicroelectronics is a highly integrated USB interface evaluation board designed for industrial and automotive applications. This versatile evaluation board is based on the robust and reliable USB Type-C and USB 2.0 FS interface, providing designers with a flexible platform for developing and testing USB-based solutions.

This evaluation board is built around the STM32 microcontroller, which is known for its high performance and low-power operation. The STEVAL-IFP019V1 leverages the microcontroller's capabilities to demonstrate the functionalities of ST's USB Type-C and USB Power Delivery (USB PD) solutions. It supports a wide range of USB PD profiles, making it suitable for applications that require adjustable power supply and communication over USB.

Key Features:

• USB Type-C and USB 2.0 full-speed interface
• Integrated USB PD controller for power negotiation
• STM32 microcontroller for versatile and powerful control
• Comprehensive set of protection features for industrial-grade reliability
• On-board debugging and programming via ST-LINK/V2
• Expandable through daughterboard connectors for additional functionality
• LED indicators for power and USB communication status

The board also includes a range of protective features such as overcurrent protection, thermal shutdown, and electrostatic discharge (ESD) protection, ensuring the longevity and reliability of both the board and connected devices. For ease of development, the STEVAL-IFP019V1 comes with an ST-LINK/V2 embedded debugger/programmer, eliminating the need for additional hardware to program or debug the STM32 microcontroller.

Developers can take advantage of the evaluation board's expandability options through its daughterboard connectors, which allow for the addition of custom-designed or existing functional modules to extend the board's capabilities to suit specific application requirements.

With its robust design, comprehensive feature set, and expandability, the STEVAL-IFP019V1 evaluation board is an ideal platform for developers looking to explore the possibilities of USB Type-C and USB Power Delivery in their applications.
