ST72F561J6TAE Microcontroller

The ST72F561J6TAE is a robust 8-bit microcontroller from the reputable semiconductor manufacturer STMicroelectronics. This microcontroller is part of ST's ST7 family, designed to offer a flexible and cost-effective solution for embedded control applications. With a 16 MHz maximum operating frequency, the ST72F561J6TAE provides a solid balance of performance and power consumption, making it suitable for a wide range of applications.

Key Features

• CPU: The ST72F561J6TAE is powered by an 8-bit CPU core which is capable of executing up to 16 MIPS at 16 MHz. This ensures efficient handling of tasks in real-time applications.
• Memory: It includes 32 Kbytes of Flash program memory, which is ideal for storing firmware and applications. Additionally, it boasts 1 Kbyte of RAM for data processing and 1 Kbyte of EEPROM for non-volatile data storage.
• I/O Ports: The device features 48 I/O lines that provide ample interfacing capabilities with other devices and peripherals in a system.
• Timers: It comes equipped with an array of timers, including a main clock counter, two input capture, two output compare, PWM outputs, and a watchdog timer, supporting complex timing operations and system stability.
• Communication Interfaces: The microcontroller supports multiple communication protocols such as SPI, SCI (UART), and I²C, allowing for versatile connectivity options with other components.
• ADC: An integrated 10-bit analog-to-digital converter with up to 16 channels enables the microcontroller to handle analog signals, making it suitable for sensor interfacing and data acquisition tasks.
• Voltage Range: The device operates over a wide voltage range from 4.5V to 5.5V, ensuring compatibility with standard power supplies and ease of integration into existing systems.
• Temperature Range: It is designed to operate within an industrial temperature range from -40°C to +85°C, which guarantees reliability under harsh environmental conditions.

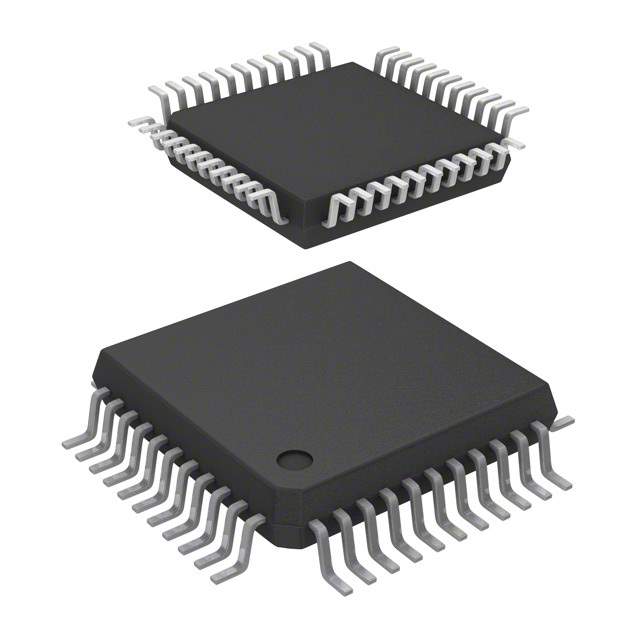

• Packaging: The ST72F561J6TAE comes in a 44-pin TQFP package, which is known for its compact footprint and ease of mounting on printed circuit boards.

Applications

The versatile feature set of the ST72F561J6TAE makes it an excellent choice for a variety of applications, including automotive, industrial control systems, home appliances, alarm systems, and battery management. Its robustness and reliability also make it suitable for applications that require operation in extreme conditions.

Conclusion

In summary, the ST72F561J6TAE from STMicroelectronics is a feature-rich 8-bit microcontroller that delivers performance, efficiency, and versatility. Its wide array of peripherals and interfaces, coupled with its robust design, make it a go-to choice for designers looking to create sophisticated and reliable embedded systems.
