Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series Automotive, AEC-Q100, SPC56xL
Package Tray
Core Processor e200z4d
Core Size 32-Bit Dual-Core
Speed 120MHz
Connectivity CANbus, LINbus, SCI, SPI, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 96
Program Memory Size 768KB (768K x 8)
Program Memory Type FLASH
RAM Size 96K x 8
Supply Voltage - Operating 3V ~ 3.63V
Data Converters A/D 32x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)

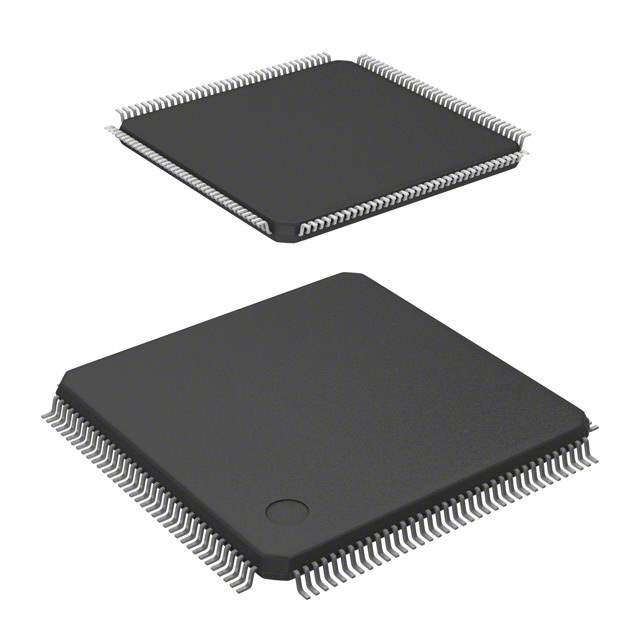

Package / Case 144-LQFP
Supplier Device Package 144-LQFP (20x20)
Base Product Number SPC56
Standard Package 360
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1263452-SPC56EL54L5CBFSY
Ultra Librarian 3D Model Ultra Librarian SPC56EL54L5CBFSY CAD Model

Description

The SPC56EL54L5CBFSY is a cutting-edge microcontroller unit (MCU) from STMicroelectronics, designed to meet the demanding requirements of automotive and industrial applications. This powerful MCU is part of the SPC56EL series, which is known for its high-performance capabilities and advanced features tailored to enhance system operations and reliability.

Key Features:

  • Core: Built on the efficient 32-bit Power Architecture® with a frequency of up to 180 MHz, the SPC56EL54L5CBFSY provides robust computational power and real-time performance, making it ideal for complex control applications.
  • Memory: Equipped with a substantial 4 MB of flash memory and 592 KB of RAM, this MCU offers ample space for sophisticated software algorithms and data buffering, ensuring smooth operation and quick access to critical functions.
  • Communication Interfaces: The device boasts a wide array of communication interfaces, including multiple CAN (Controller Area Network) interfaces, LIN (Local Interconnect Network), FlexRay, and Ethernet, facilitating versatile connectivity options for various automotive networks.
  • Advanced Timer Systems: With its sophisticated timer systems, including motor control timers, periodic interrupt timers, and watchdog timers, the SPC56EL54L5CBFSY provides precise timing control for real-time tasks and system safety measures.
  • Analog-to-Digital Converters (ADCs): High-resolution ADCs are integrated into the MCU, offering accurate analog signal processing capabilities, which are essential for sensor data acquisition and control applications.
  • Enhanced Safety Features: Safety is a critical aspect of automotive MCUs, and the SPC56EL54L5CBFSY includes advanced safety features such as Error Correction Code (ECC) memory protection, a Memory Protection Unit (MPU), and a built-in self-test (BIST) for CPU and RAM, ensuring the reliability and integrity of the system.

Applications:

The versatility and robust feature set of the SPC56EL54L5CBFSY make it an excellent choice for a variety of applications, particularly in the automotive sector, such as engine management, transmission control, chassis and safety systems, and advanced driver assistance systems (ADAS). It is also suitable for industrial control systems requiring high levels of processing power and reliability.

With its advanced architecture, comprehensive feature set, and commitment to safety, the SPC56EL54L5CBFSY MCU from STMicroelectronics stands as a premium solution for developers looking to create sophisticated and reliable automotive and industrial systems.
