Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory>Memory
Manufacturer STMicroelectronics
Packaging Reel - TR
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 4Kb (512 x 8)
Memory Interface SPI
Clock Frequency 20 MHz
Write Cycle Time - Word, Page 5ms
Voltage - Supply 1.8V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount

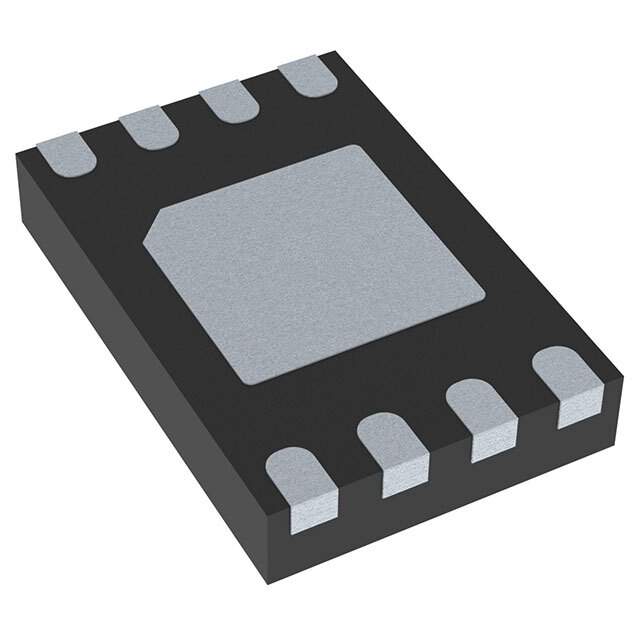

Case / Package 8-UFDFN Exposed Pad
Supplier Device Package 8-UFDFPN (2x3)
Base Product Number M95040
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0051
Other Part Number 497-15767-1,497-15767-2,497-15767-6,M95040-RMC6TG-ND
Standard Package 5,000
Win Source Part Number 1320813-M95040-RMC6TG
Ultra Librarian 3D Model Ultra Librarian M95040-RMC6TG CAD Model

Description

The M95040-RMC6TG is a robust and reliable EEPROM (Electrically Erasable Programmable Read-Only Memory) chip produced by the renowned manufacturer, STMicroelectronics. This memory device is designed to provide a high-performance data storage solution that can be electrically erased and reprogrammed, making it ideal for a wide range of applications across various industries.

Key Features

  • Memory Size: The M95040-RMC6TG offers a storage capacity of 4 Kbits, which is ample space for storing configurations, settings, or small data sets that need to be preserved across power cycles.
  • Interface: This device communicates via a Serial Peripheral Interface (SPI), ensuring fast data transfer speeds and compatibility with a broad range of microcontrollers and processors.
  • Operating Voltage: It operates within a supply voltage range of 2.5V to 5.5V, making it versatile for use in systems with varying power requirements.
  • Package: The EEPROM comes in an 8-pin UFDFPN package, known for its compact footprint and suitability for space-constrained applications.
  • Temperature Range: With an industrial temperature range of -40°C to +85°C, the M95040-RMC6TG can reliably operate in harsh environmental conditions.
  • Write Cycle Time: It features a fast write cycle time, which allows for quick updates to stored data, enhancing the overall performance of the system it is integrated into.

Applications

The versatility of the M95040-RMC6TG makes it an excellent choice for a variety of applications, including:

  • Industrial control systems
  • Consumer electronics
  • Automotive systems
  • Medical devices
  • Smart metering

STMicroelectronics' commitment to quality ensures that the M95040-RMC6TG EEPROM is a reliable component for storing critical data. Its durability, coupled with the ability to withstand extreme conditions, makes it a preferred choice for designers and engineers looking for a non-volatile memory solution.
