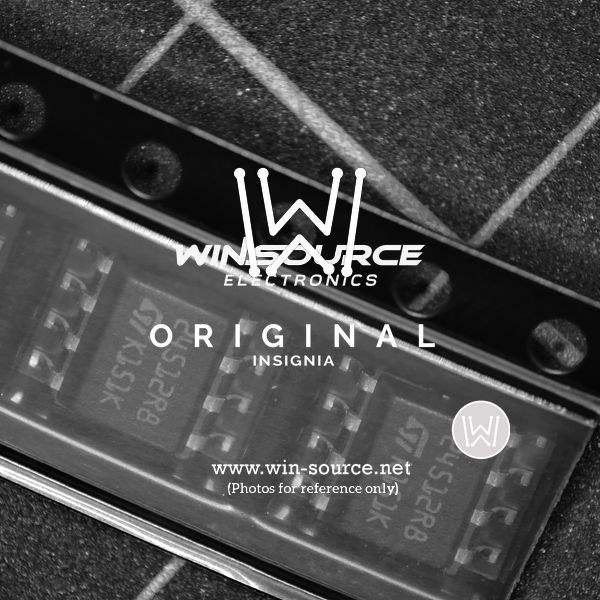

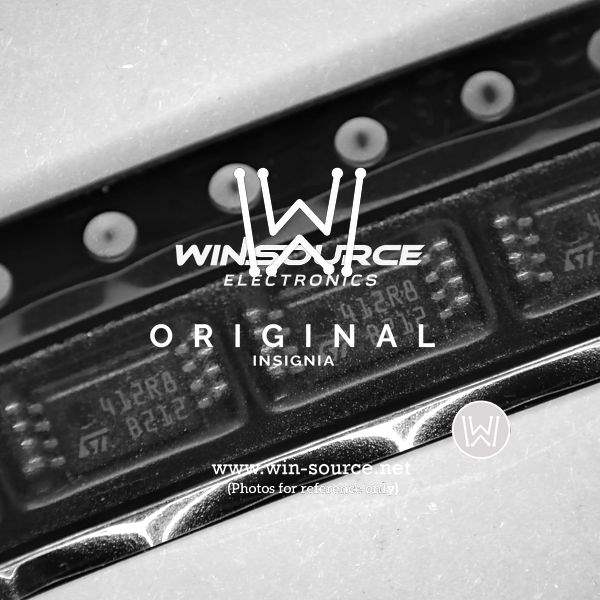

The M24512-RDW6TP from STMicroelectronics is a robust and high-performance EEPROM (Electrically Erasable Programmable Read-Only Memory) device designed for a wide range of applications that require reliable and non-volatile data storage. With a storage capacity of 512 Kbit, it provides ample space for firmware storage, configuration settings, and data logging.
Key Features:
- Memory Size: 512 Kbit, organized as 64K x 8 bits, which allows for efficient data management and storage organization.
- Interface: I²C-compatible (Two-wire) serial interface, which ensures easy integration with most microcontrollers and processors, offering a simple and efficient communication protocol.
- Speed: Supports up to 1 MHz (Fast-mode Plus) I²C bus communication speeds, enabling quick data transfer and reducing the time required for data read and write operations.
- Voltage Range: Wide supply voltage range from 1.8 V to 5.5 V, making it suitable for various applications and compatible with both low-voltage and standard logic levels.
- Write Cycle Time: Byte or page write in 5 ms max, which allows for rapid updates to the stored data with minimal delay.
- Endurance: High reliability with 4 million write cycles per byte and 200 years of data retention, ensuring the longevity and integrity of the stored data over an extended period.
- Operating Temperature: Industrial temperature range from -40°C to +85°C, allowing the device to perform reliably in harsh environmental conditions.
- Packaging: Available in a TSSOP8 package, which is known for its compact footprint and suitability for space-constrained applications.
Applications:
The M24512-RDW6TP is versatile and can be used in various industrial, consumer, and automotive applications. It is ideal for use in smart meters, medical devices, IoT devices, and automotive control units where reliable data storage is crucial.
With its combination of high density, fast data transfer speeds, and robust endurance, the M24512-RDW6TP EEPROM from STMicroelectronics is an excellent choice for designers looking to enhance their systems with dependable non-volatile memory.
