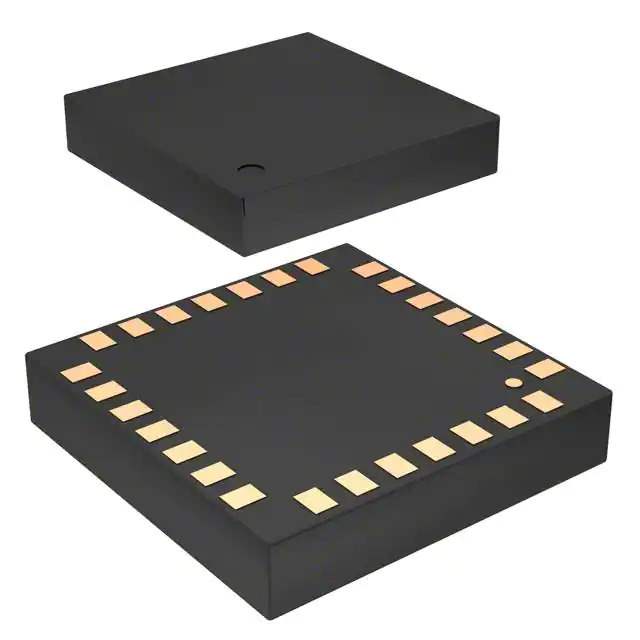

The LSM303DLH is a system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor. Manufactured by STMicroelectronics, this compact module provides high-precision data to applications requiring orientation and navigational functionalities. It is an ideal choice for enhancing the user experience in mobile phones, tablets, and personal navigation devices.

Key Features

• 3D Magnetometer: The LSM303DLH includes a built-in magnetic field sensor that detects the earth's magnetic field in three dimensions, allowing it to function as a digital compass.
• 3D Accelerometer: This module also features a three-axis accelerometer that measures acceleration due to motion or gravity, providing tilt-compensated compass readings and motion detection.
• High Resolution: The magnetometer and accelerometer boast high-resolution output, which ensures accurate and reliable readings for demanding applications.
• I2C Serial Interface: The device is equipped with an I2C serial bus interface, supporting easy integration with most microcontrollers and allowing for a simplified connection with a host system.
• Programmable Interrupt: A programmable interrupt feature is included, which can be set for free-fall, motion detection, and magnetic field detection events.
• Compact Form Factor: Its small footprint and low power consumption make the LSM303DLH suitable for battery-powered or space-constrained applications.

Applications

The LSM303DLH is versatile and can be used across a wide range of market segments. Its primary applications include but are not limited to:

• Mobile and handheld devices for orientation detection (e.g., portrait/landscape switching)
• Personal navigation and fitness devices to track movement and direction
• Pointing devices and game controllers for motion input and user interaction
• Robotics for navigation and spatial awareness

Overall, the LSM303DLH from STMicroelectronics is a powerful and flexible solution for adding sophisticated navigation and motion sensing capabilities to a vast array of electronic products.
