The HSP061-4NY8 from STMicroelectronics is a state-of-the-art ESD protection device, designed to safeguard high-speed data lines from electrostatic discharge damage. This component is particularly suitable for applications where signal integrity and protection are paramount, such as USB 2.0, HDMI, Ethernet, and other communication ports.

Key Features

• High ESD Protection Level: Withstands electrostatic discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard, providing robust protection for sensitive circuits.
• Low Capacitance: The ultra-low line capacitance of only 0.7 pF minimizes signal attenuation, making it ideal for high-speed data lines without compromising data integrity.
• Low Leakage Current: Ensures minimal power consumption in idle mode, thus enhancing the energy efficiency of the overall system.
• High Integration: Integrates four protection channels in a single package, saving PCB space and simplifying design.
• Flow-Through Design: The flow-through layout of the device simplifies PCB layout by allowing signal lines to pass directly through the device, reducing signal crosstalk and impedance mismatches.

Applications

The HSP061-4NY8 is designed to be used in a variety of applications where digital interfaces require protection from ESD events. These applications include:

• Mobile Phones and Smart Devices
• Computers and Peripherals
• Consumer Electronics
• Networking Equipment
• Set-Top Boxes

Package Information

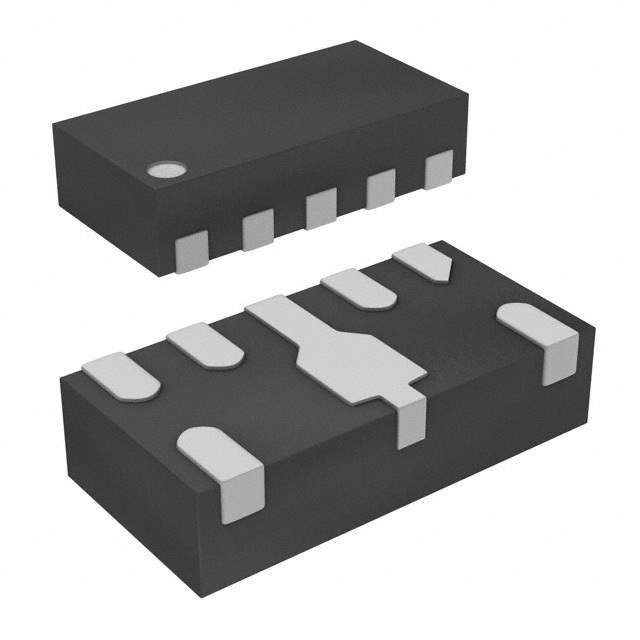

The device comes in a small μQFN-10 package, which is optimized for minimal footprint and low profile applications. Its package dimensions are conducive to modern compact electronic assemblies, making it an excellent choice for sleek and space-constrained designs.

Quality and Reliability

STMicroelectronics is known for its commitment to quality and reliability. The HSP061-4NY8 is no exception and is manufactured to meet high industry standards, ensuring performance and durability across a wide range of operating conditions.
