The HSP061-4M10Y is a cutting-edge ESD protection device from the renowned semiconductor manufacturer STMicroelectronics. Designed to safeguard high-speed interfaces from electrostatic discharge (ESD) damages, this product is an essential component for maintaining the integrity and longevity of sensitive electronic equipment.
Key Features
- High ESD Protection: The HSP061-4M10Y offers robust ESD protection up to 15 kV, ensuring that your devices remain safe from sudden electrical spikes.
- Low Capacitance: With an ultra-low capacitance of just 0.7 pF, this device is ideal for protecting high-speed data lines without compromising signal integrity.
- Multi-Line Protection: This component can protect up to four data lines, making it a versatile solution for a variety of applications.

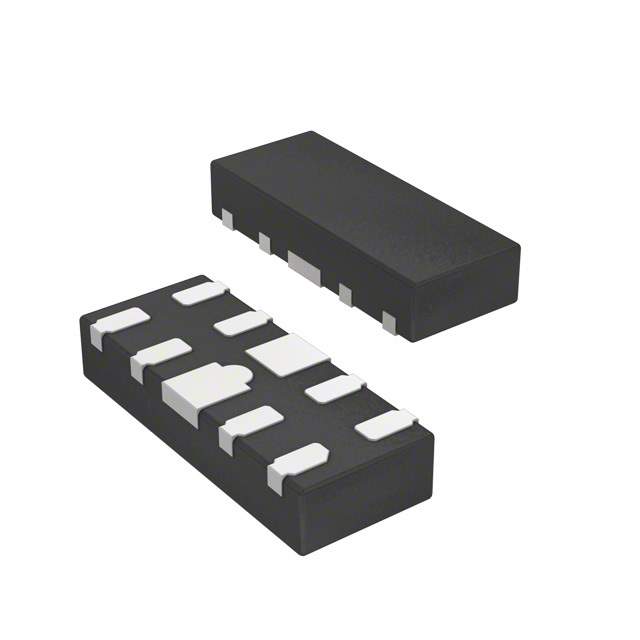

- Small Package Size: The HSP061-4M10Y comes in a compact μQFN-10L package, perfect for space-constrained applications.
- Automotive Qualification: Qualified under AEC-Q101 standards, the device is suitable for automotive applications that demand high reliability and performance.
Applications
The HSP061-4M10Y is particularly well-suited for high-speed data interfaces such as USB 2.0, HDMI, and Ethernet. Its application areas extend to consumer electronics, automotive infotainment systems, and any other industry where ESD-sensitive components require protection.
Technical Specifications
Parameter
Value
ESD Protection Level
15 kV
Capacitance
0.7 pF
Number of Lines Protected
4
Package Type
μQFN-10L
Automotive Qualification Standard
AEC-Q101
Conclusion
In summary, the HSP061-4M10Y from STMicroelectronics is an advanced ESD protection device that offers both high performance and reliability. Its low capacitance, multi-line protection, and compact form factor make it an ideal choice for designers looking to bolster their high-speed data interfaces against ESD events.
