EVALST7540-1 Product Overview

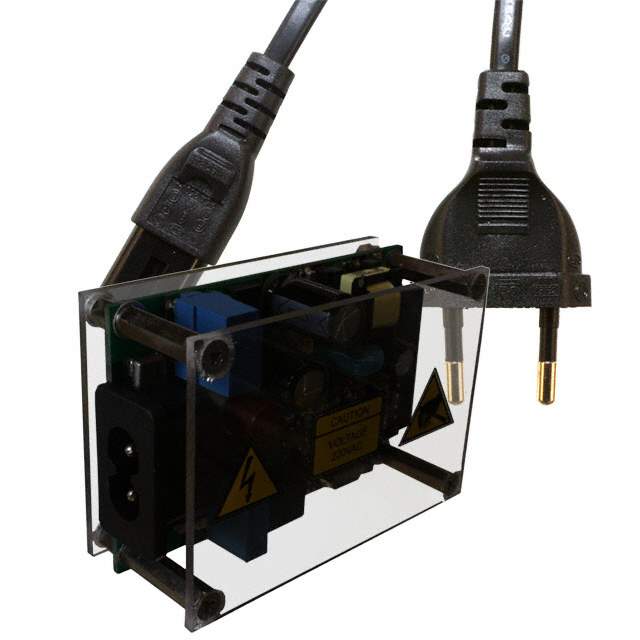

The EVALST7540-1 from STMicroelectronics is a comprehensive evaluation board designed for the ST7540 PLM (Power Line Modem) chip, which facilitates robust communication over power lines. This product is an essential tool for developers and engineers looking to explore the capabilities of power line communication (PLC) in various applications such as smart energy management, home automation, and remote monitoring systems.

Key Features

• Integrated ST7540 Power Line Modem for FSK and PSK modulation schemes.
• Supports a wide range of frequencies and baud rates, making it versatile for different PLC standards and requirements.
• Configurable power level and signal amplification for optimal communication over various distances and power line conditions.
• Includes all necessary passive components for immediate use and testing.
• On-board microcontroller for standalone operation or for use with an external host.
• LED indicators for visual feedback on power, communication status, and error conditions.
• Pre-loaded with demonstration software for quick start-up and evaluation.
• Flexible connection options including screw terminals and header pins for easy integration into existing setups.

Applications

The EVALST7540-1 is suitable for a wide array of applications, including:

• Smart Grid and Smart Metering
• Home and Building Automation
• Industrial Automation and Control Systems
• Street Lighting Control
• Renewable Energy Systems Monitoring

Getting Started

The EVALST7540-1 evaluation board is designed for ease of use, allowing for quick setup and experimentation. The board can be connected to a PC via a serial interface for configuration and data exchange. Comprehensive documentation and software tools provided by STMicroelectronics support developers in getting up to speed with the features and capabilities of the ST7540 chip through the EVALST7540-1 board.

Whether you're a seasoned engineer or a newcomer to PLC technology, the EVALST7540-1 provides a solid platform for developing and testing power line communication solutions with the support and quality assurance of STMicroelectronics.
