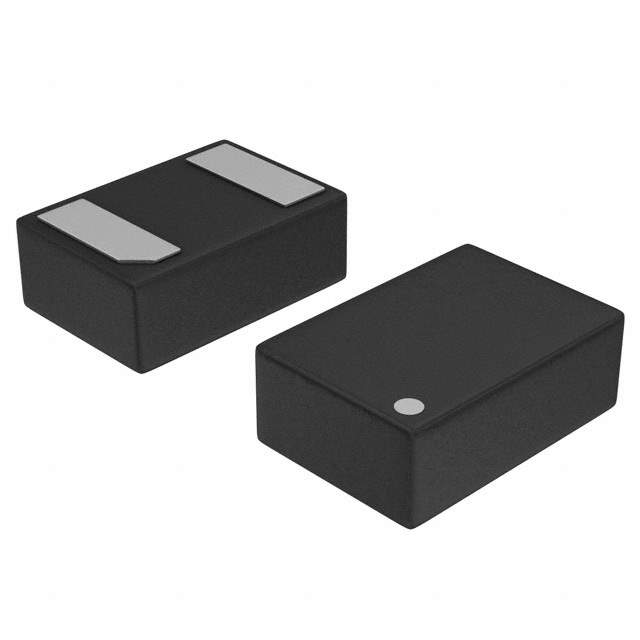

STMicroelectronics ESDA8V2-1MX2 Bidirectional ESD Protection Diode

The ESDA8V2-1MX2 from STMicroelectronics is a state-of-the-art bidirectional single-line Transil diode specifically designed to provide outstanding Electrostatic Discharge (ESD) protection for electronic devices. This compact and robust protection diode is a perfect solution for safeguarding high-speed data lines and other sensitive circuits against the damaging effects of ESD, which can occur during manufacturing, handling, or operation.

Key Features

• Low Clamping Voltage: The ESDA8V2-1MX2 offers a low clamping voltage, which is crucial for protecting sensitive components from overvoltage transients.
• High ESD Protection Level: It is capable of withstanding ESD discharges up to the IEC 61000-4-2 level 4 standard, providing peak pulse power up to 200 W (8/20 µs).
• Bidirectional Device: As a bidirectional diode, it can protect circuits from ESD strikes entering from either direction, simplifying circuit design and reducing component count.
• Low Leakage Current: The device features a very low leakage current, ensuring minimal impact on the normal operation of the protected circuit.
• SOT-23 Package: Encased in a small SOT-23 package, the ESDA8V2-1MX2 is ideal for high-density circuit boards where space is at a premium.

Applications

The ESDA8V2-1MX2 is suitable for a wide range of applications, including:

• USB 2.0, 3.0, and 3.1 power and data line protection
• HDMI, DisplayPort, and other high-speed digital interface protection
• Smartphone, tablet, and other portable device interfaces
• Antenna protection for wireless devices
• ESD protection for touchscreen controllers

Advantages

The ESDA8V2-1MX2 offers several advantages for designers looking to enhance the reliability and robustness of their electronic systems. Its bidirectional protection simplifies design, while its low clamping voltage ensures sensitive components are shielded from the harmful effects of ESD. The small SOT-23 package allows for space-efficient designs, making it a versatile choice for a multitude of applications.

With the combination of high ESD protection levels and minimal impact on the circuit performance, the ESDA8V2-1MX2 from STMicroelectronics is an excellent choice for designers aiming to increase the durability and longevity of their electronic products.
