Same model may have multiple batches, images only for reference.

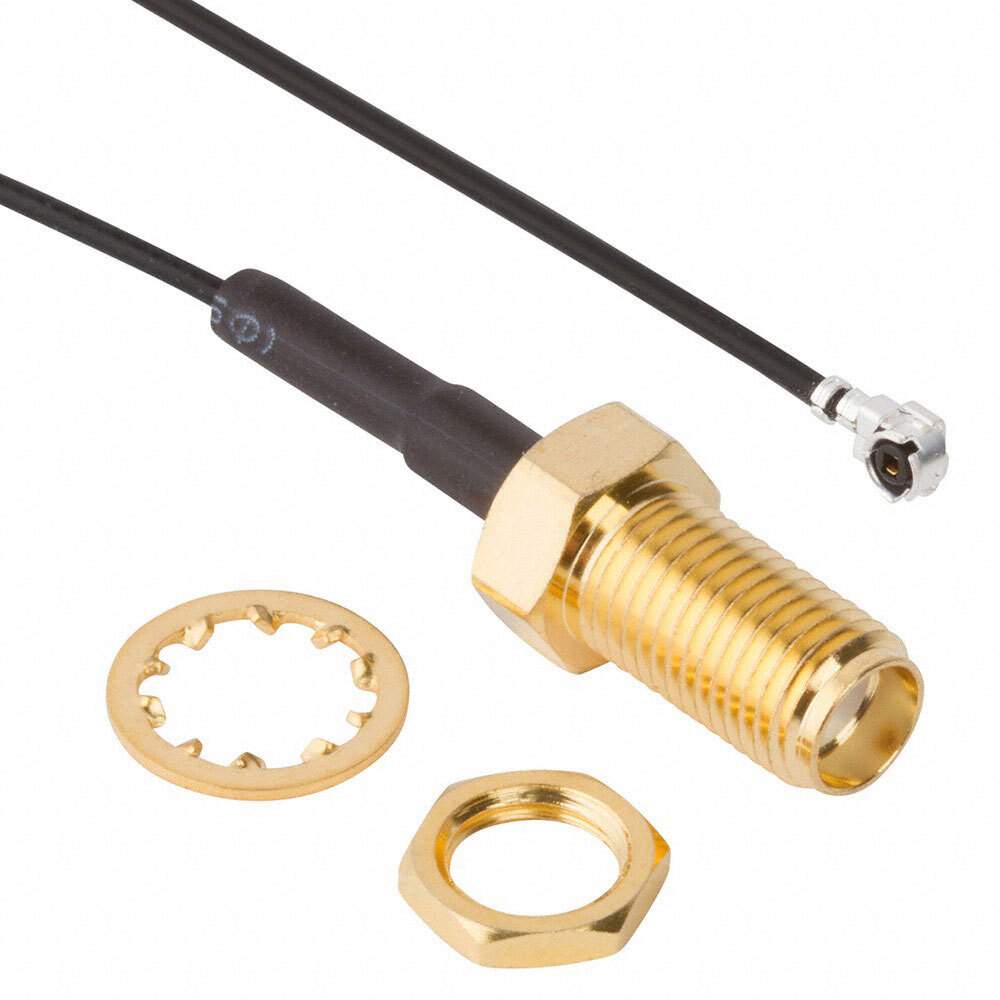

RF2363 Real Image
Same model may have multiple batches, images only for reference.

RF2363

Part No RF2363
Manufacturer RF Micro Devices
Catalog Coaxial Cables (RF)
Description SMA BULKHEAD JACK-AMC PLUG 200MM
Datasheet
RF2363 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Female
Style SMA to UMC
1st Connector SMA Female Jack
2nd Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
Length 7.874" (200.00mm)
Cable Type 1.13mm OD Coaxial Cable
Impedance 50 Ohm
Maximum Input Frequency 6GHz
Win Source Part Number 293340-RF2363
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RF2363 CAD Model

Description

The Amphenol RF Division 293340-RF2363 is a female to female cable assembly designed for use in electronic applications.

  • Length: 7.874" (200.00mm)
  • Cable Type: 1.13mm OD coaxial cable
  • Impedance: 50 Ohm
  • Style: SMA to UMC
  • First Connector: SMA female jack
  • Second Connector: ultra miniature coaxial plug female socket, right angle
  • Maximum Input Frequency: 6GHz
  • Popularity: medium
